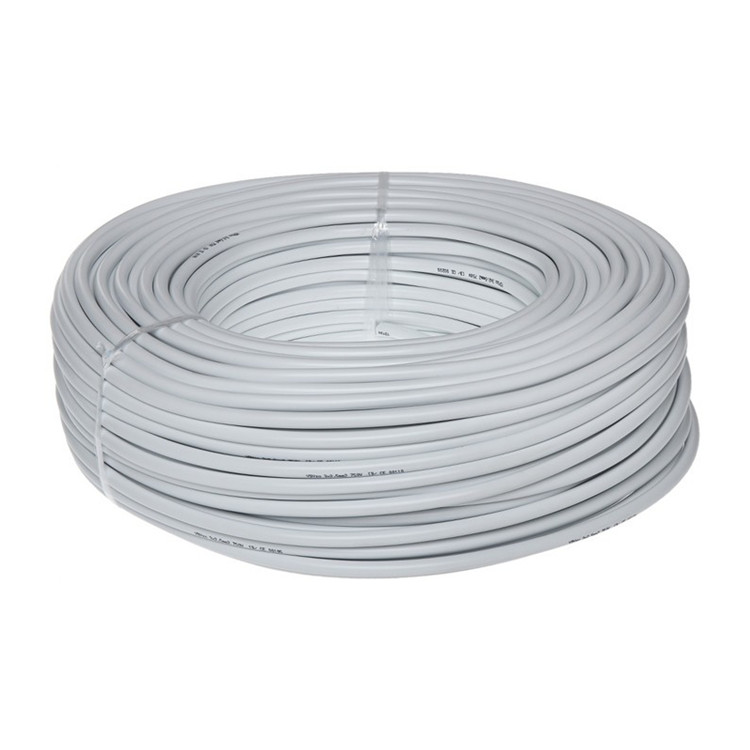

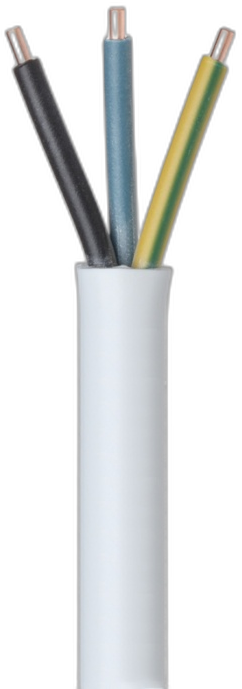

3 Core Solid White

Application
Round power cable designed for fixed especially indoor applications in air, and under plaster and for put in conduits. In case of outdoorinstallations laying in cable duct. Installation of the product should only be carried out by personnel trainedand qualified for electrical works. The product is designed according to recognized standards. Applicable rules of installation must beapplied at all times.

Features
Conductor category: Class 1 = solid
Conductor material: Copper
Shape of conductor: Round
Core insulation material: Polyvinyl chloride (PVC)
Material outer sheath: Polyvinyl chloride (PVC)
Available colours: White, Black or Gray
Rated voltage: 450/750 V
Test voltage (AC): 4 kV (12 kV DC)
Max. operating temperature: 70 °C
Minimum installation temperature:  -5 °C

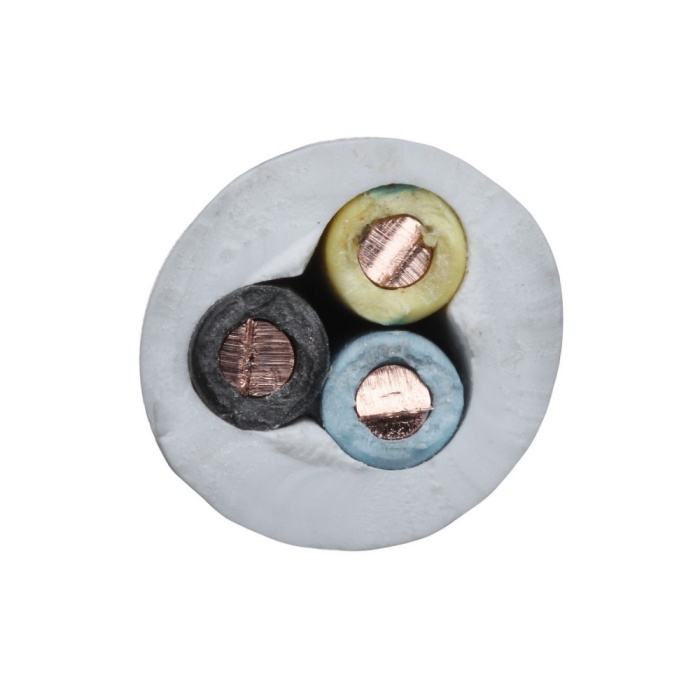

Number of cores xcross section mm²	Insula-tion thick-ness nom. mm	Outer Sheath Thick-ness nom. mm	Outer diameter  nom. mm	Weight (approx.) kg/km	Conductor DC resistance at 20°CΩ/km	Delivery length. m
3x1.5	0.8	1.2	9.6	118	12.1	100, 305
3x2.5	0.8	1.2	11	158	7.41	100, 305
3x4.0	0.9	1.2	12.6	223	4.61	100, 305
3x6.0	0.9	1..3	13.9	299	3.08	100, 305
4x1.5	0.8	1.2	11	145	12.1	100, 305
4x2.5	0.8	1.2	12	196	7.41	100, 305
4x4.0	0.9	1.2	13.9	285	4.61	100, 305
4x6.0	0.9	1..3	15.2	376	3.08	100, 305
