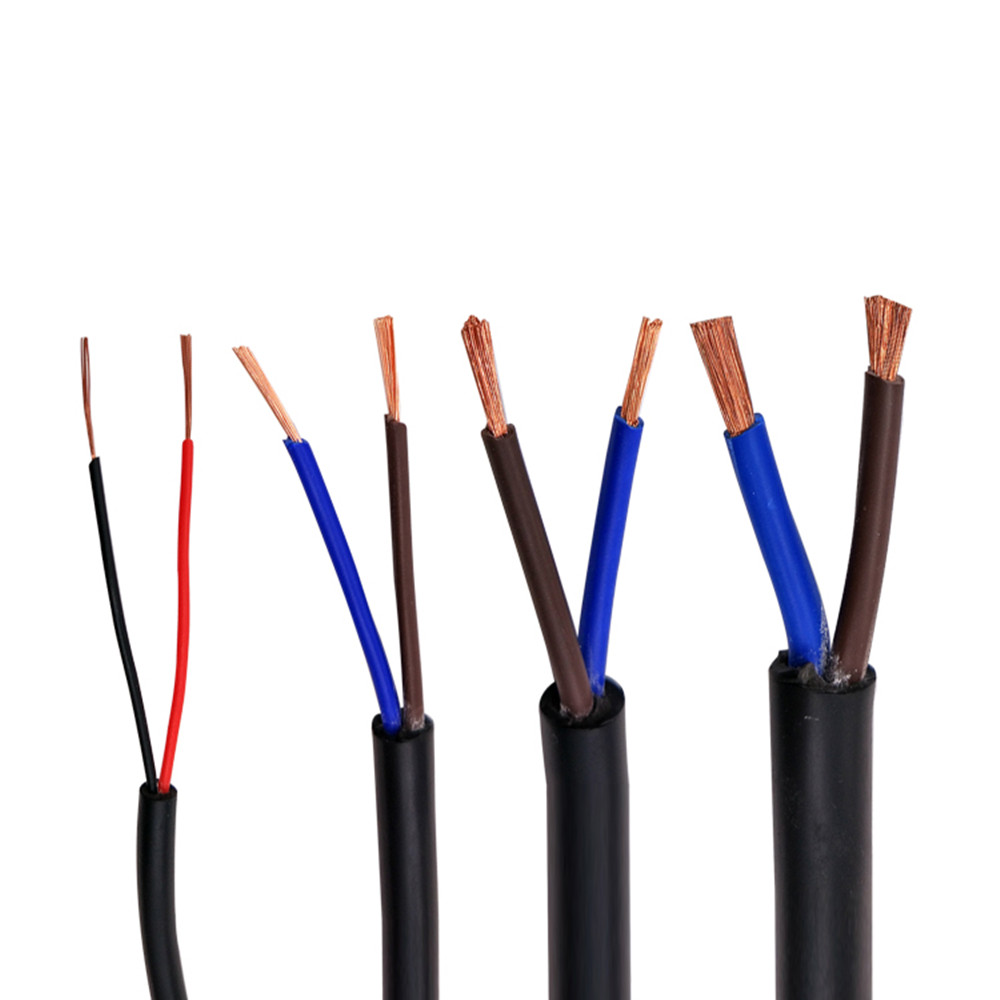

2 Core Cu Black

1, Applications
Working as connecting and control cable under dry or wet indoor situation , especially for kinds of electronic installation of industrial condition . The cable cross section area 0.5mm2 or upper could work as control and connecting cable in machine tool manufacture, whole set equipment , installation , power station , belching and air conditioner installation , For its special flexibility, it could also work in installation or fixation.

2,Construction
   Stranded Bare Copper Conductor and PVC Insulated PVC Sheath Electric Power Cable

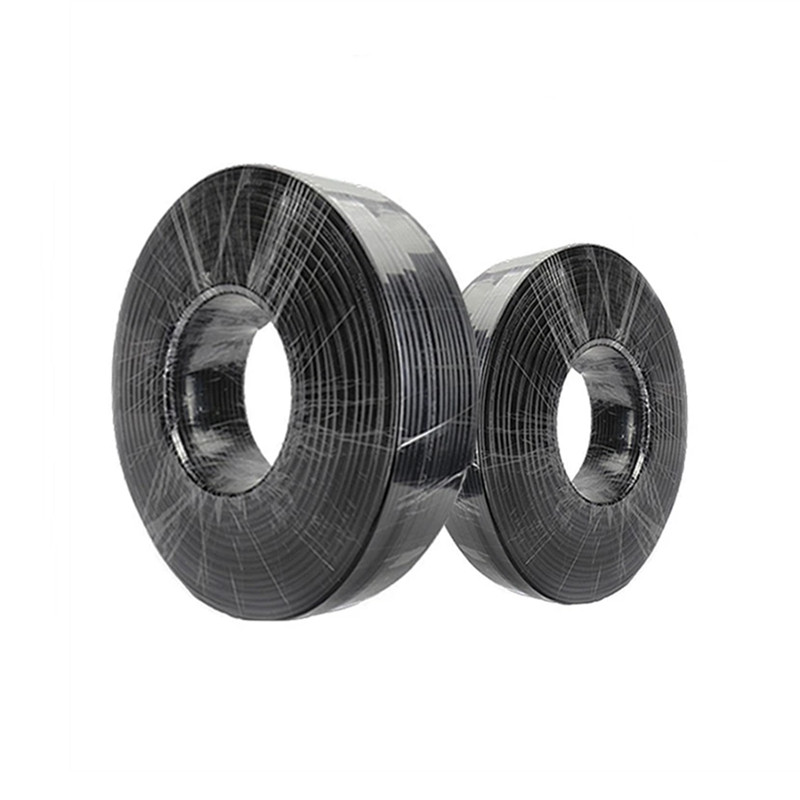

3,Standard Packing
  100m, 500FT, 200m, 1000FT, 500m woodem drum or request.

4, Technical Data
  Temperature Range: 70-105℃
Max Working Voltage: 300/500V, 450/750V
  Max Current: 1 amp per core

5,Standards
  BS4737: Insulated cables, PVC insulated for intruder alarm systems
  NEC 725/800: CM / CL2,

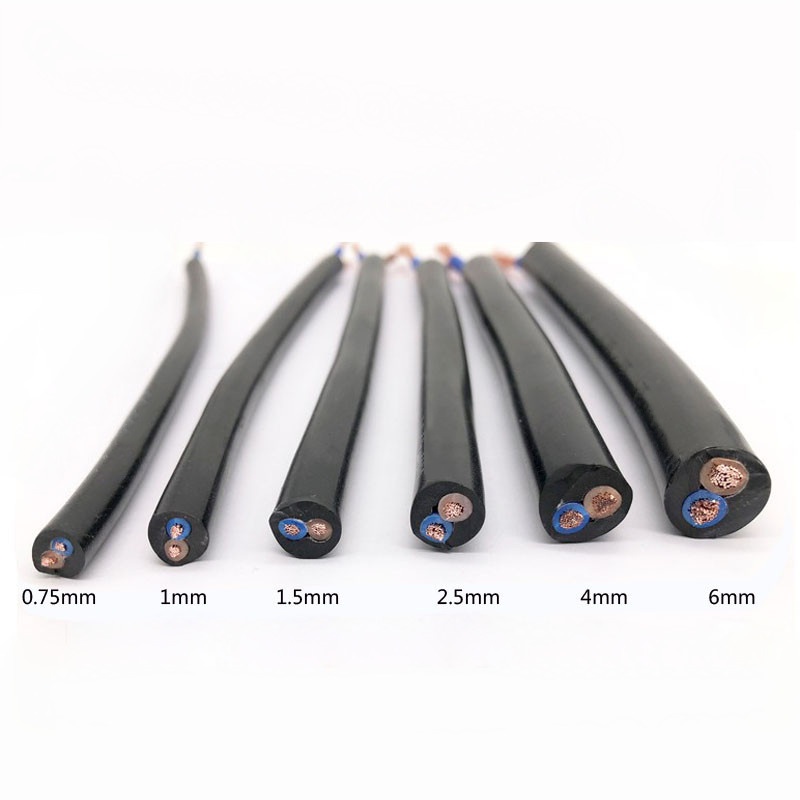

6, Specifications

Model No.	Conductor		Insualtion		Jacket
	Cores × Nom. Area	Max. Resistance at 20°C	Thickness	Min. Resistance at 70°C	Thickness	Min. Dia	Max
	mm²	MΩ/km	mm	MΩ/km	mm	mm	mm
RVV2×0.75	2×0.75	26	0.6	0.011	0.8	6	7.6
RVV2×1.0	2×1.0	19.5	0.6	0.01	0.8	6.4	8
RVV2×1.5	2×1.5	13.3	0.7	0.01	0.8	7.4	9
RVV2×2.5	2×2.5	7.98	0.8	0.009	1	8.9	11
RVV3×0.75	3×0.75	26	0.6	0.011	0.8	6.4	8
RVV3×1.0	3×1.0	19.5	0.6	0.01	0.8	6.8	8.4
RVV3×1.5	3×1.5	13.3	0.7	0.01	0.9	8	9.8
RVV3×2.5	3×2.5	7.98	0.8	0.009	1	9.6	12
RVV4×0.75	4×0.75	26	0.6	0.011	0.8	6.8	8.6
RVV4×1.0	4×1.0	19.5	0.6	0.01	0.9	7.6	9.4
RVV4×1.5	4×1.5	13.3	0.7	0.01	1	9	11
RVV4×2.5	4×2.5	7.98	0.8	0.009	1.1	10.5	13
RVV5×0.75	5×0.75	26	0.6	0.011	0.9	7.4	9.6
RVV5×1.0	5×1.0	19.5	0.6	0.01	0.9	8.3	10
RVV5×1.5	5×1.5	13.3	0.7	0.01	1.1	10	12
RVV5×2.5	5×2.5	7.98	0.8	0.009	1.2	11.5	14
