2 Core Cu White

Quick Enquiry>>

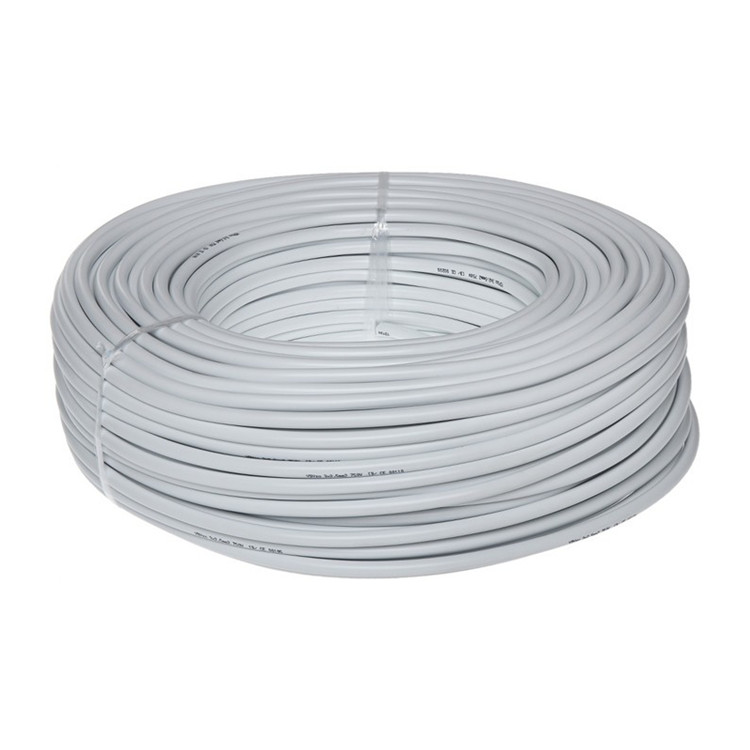

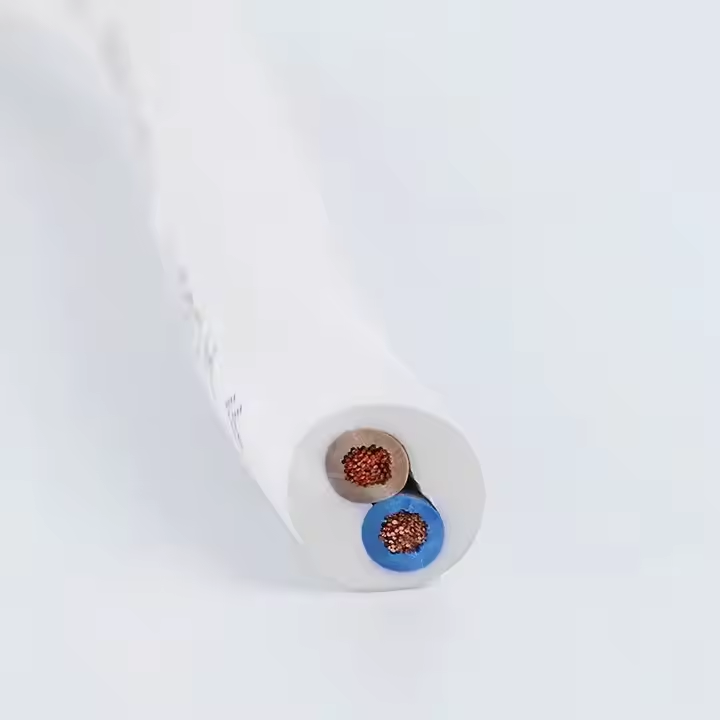

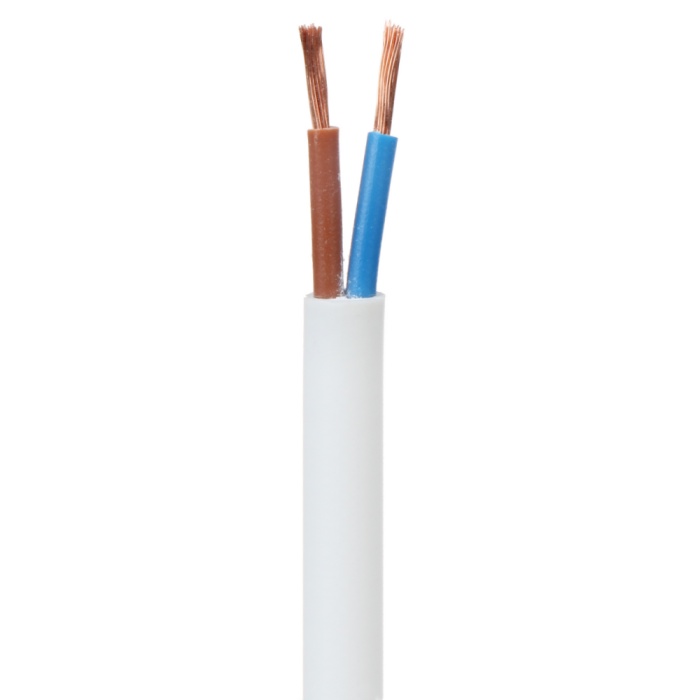

2 Core Cu White

Application

Use in domestic premises and offices, for ordinary duty applications and household appliances, including in damp premises; (e.g. vacuum cleaners, washing machines, spin dryers, and refrigerators); use outdoors for temporary periods of short duration.

Technical Detail

Conductor style: Flexible
Conductor material: Copper
Cores quantity: 2 core, 3 core, 4 core, 5 core, 6 core, 7 core, 8 core
Insulation/Sheath: PVC
Temperature: : 70℃ maximum
Voltage Rating: 450/750V

Model No.	Conductor		Insulation		Sheath		Weight
Model No.	Section (mm²)	Max. Resistance at 20℃ (MΩ/km)	Thickness (mm)	Max. Resistance at 70℃(MΩ/km)	Thickness (mm)	Overall O.D (mm)	kg/km
LP-2G075	2×0.75	26	0.6	0.011	0.8	6.1	55
LP-2G100	2×1.0	19.5	0.6	0.01	0.8	6.5	60
LP-2G150	2×1.5	13.3	0.7	0.01	0.8	7.5	80
LP-2G250	2×2.5	7.98	0.8	0.009	1.0	9.0	119
LP-2G400	2×4.0	4.95	0.8	0.007	1.1	10.4	160
LP-3G075	3×0.75	26	0.6	0.011	0.8	6.5	65
LP-3G100	3×1.0	19.5	0.6	0.01	0.8	7.0	74
LP-3G150	3×1.5	13.3	0.7	0.01	0.8	8.1	101
LP-3G250	3×2.5	7.98	0.8	0.009	1.0	10.0	155
LP-3G400	3×4	4.95	0.8	0.007	1.1	11.3	250
LP-4G075	4×0.75	26	0.6	0.011	0.8	7.2	79
LP-4G100	4×1.0	19.5	0.6	0.01	0.8	7.9	94
LP-4G150	4×1.5	13.3	0.7	0.01	0.8	9.3	131
LP-4G250	4×2.5	7.98	0.8	0.009	1.0	10.8	185
LP-4G400	4×4.0	4.95	0.8	0.007	1.1	12.4	260
LP-5G075	5×0.75	26	0.6	0.011	0.8	8.2	95
LP-5G100	5×1.0	19.5	0.6	0.01	0.8	8.6	120
LP-5G150	5×1.5	13.3	0.7	0.01	0.8	10.2	164
LP-5G250	5×2.5	7.98	0.8	0.009	1.0	12.1	232
LP-5G400	5×4.0	4.95	0.8	0.007	1.1	14.0	330

Normal package: Inner with 100m in ring, outer with carton.
Please advise if want to OEM service
Delivery: Shipping by sea
