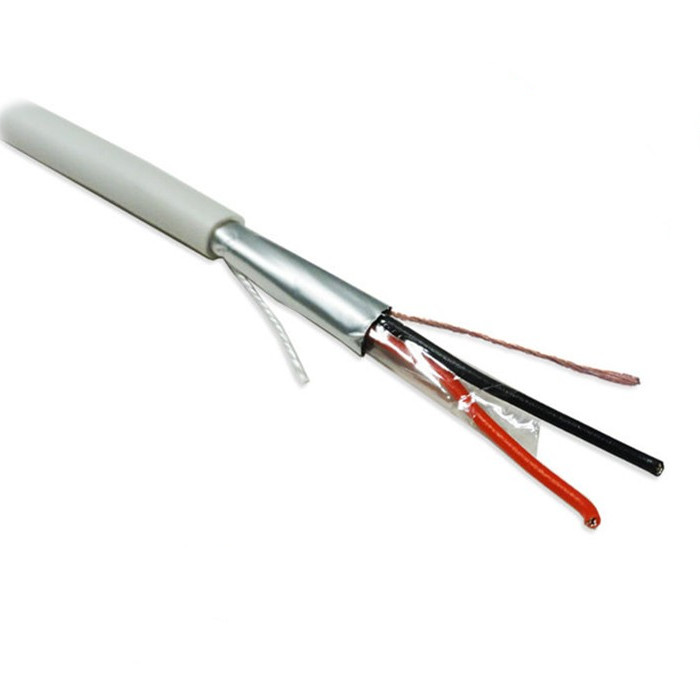

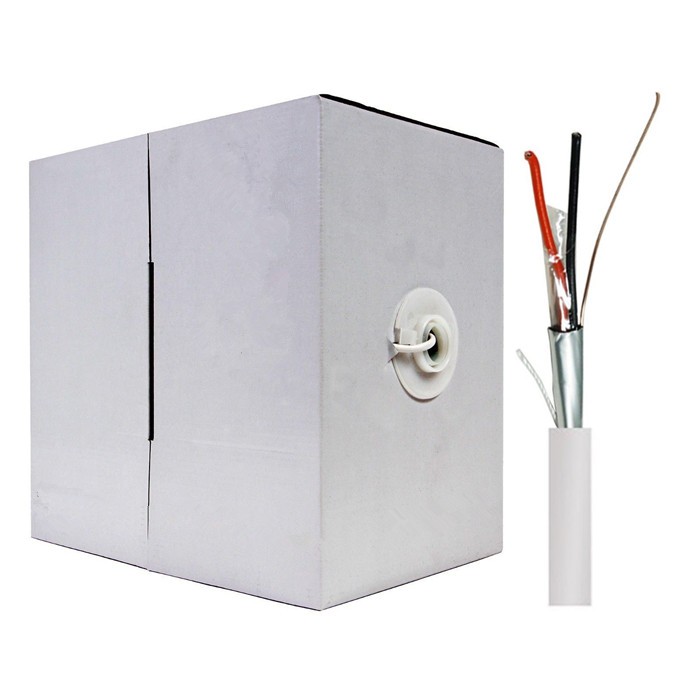

2 Core Shielded White

Specification
1)Conductor: (2-8cores are available)
Bare Copper/CCA Stranded or Solid Conductor
Flexible section in 0.8sqmm,1.0mm 1.5mm,ect

2)Insulation:
PVC flame retardant/PE

3)Drain wire: (Options)
In Stranded or Solid Bare Copper,CCA,CCS

4)Shielding: (Options)
Aluminum/Polyester Foil Coverage

5)Outer Jacket:
General PVC,PVC flame retardant,LSZH Sheath,Polyethylene Sheath

6)Color
Red White gray,ect


Stranded Wire

Item No.	Decription	Conductor Spec.	Insulatioon		Jacket		Packing
			Nom.Thick (mm)	Nom.Diam (mm)	Nom.Thick (mm)	Nom.Diam. (mm)
ALARM	TC/BC/CCA/TCCA Screened Unscreened Rip cord or No Drain wire or No	2*7*0.2	0.22	1.05	0.45	3.1	Box Coil Drum Paper reel Plastic reel Wooden reel
		4*7*0.2	0.22	1.05	0.45	3.4
		6*7*0.2	0.22	1.05	0.5	4.1
		8*7*0.2	0.22	1.05	0.5	4.5
		10*7*0.2	0.22	1.05	0.6	5.1
		12*7*0.2	0.22	1.05	0.6	5.5
		14*7*0.2	0.22	1.05	0.7	6.1
		16*7*0.2	0.22	1.05	0.7	6.4
		20*7*0.2	0.22	1.05	0.8	7.2


Solid Wire

Description	Conductor Spec.	Insulation		Jacket		Packing
		Nom.Thick.(mm)	Nom.Diam(mm)	Nom.Thick.(mm)	Nom.Diam.(mm)
Fire Alarm Cable	2*1.0	0.6	2.4	1.0	6.8	Box Coil Drum Paper reel Plastic reel Wooden reel
	2*1.5	0.7	2.8	0.8	7.2
	2*2.5	0.8	3.4	1.0	9
	4*0.5	0.4	1.6	1.2	6.2
	4*1.0	0.6	2..4	0.8	7.4
	4*1.5	0.7	2.8	0.8	8.3
	4*2.5	0.8	3.4	1.1	10.3


Application:  These cables are designed for installation signal alarm and alarm systems.They allow the connection of contacts,detectors and sensors,infr-red as well asmicrowave or mixed technoiogy to the switchboard.
