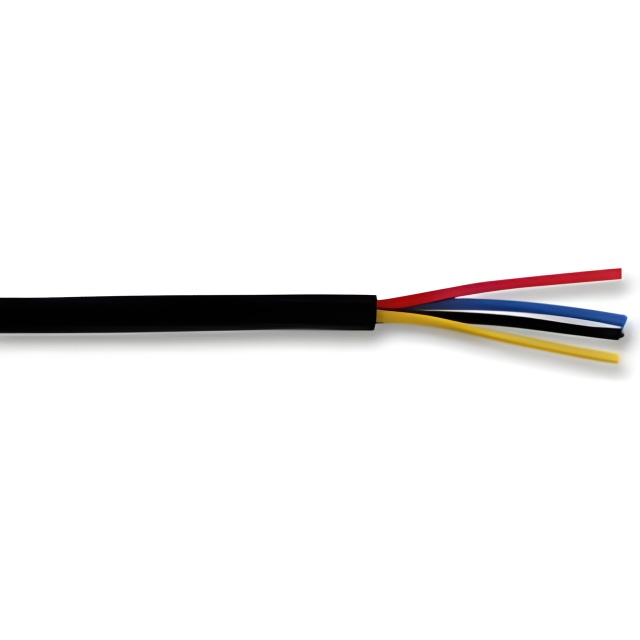

4 Core Outdoor

Specification
1)Conductor: (2-8cores are available)
Bare Copper/CCA Stranded or Solid Conductor
Flexible section in 0.75mm,0.8mm,1.0mm 1.5mm,2.5mm.,ect.

2)Insulation:
PVC

3)Drain wire: (Options)
In Stranded or Solid Bare Copper,CCA,CCS

4)Shielding: (Options)
Aluminum/Polyester Foil Coverage

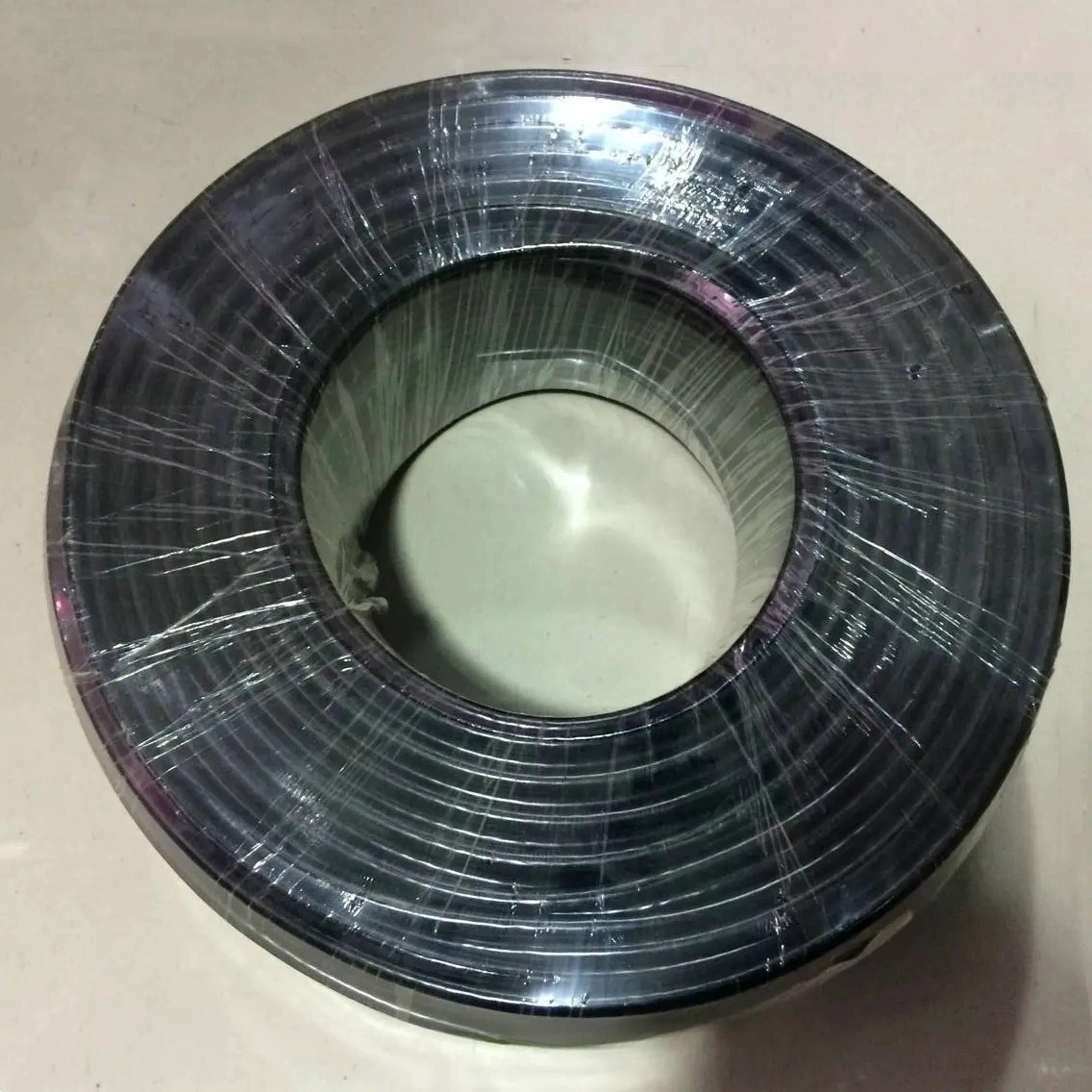

5)Outer Jacket:
PE Sheath

6)Color:
Black

7)Stranded Wire:

Item No.	Description	Conductor Spec.	Insulation		Jacket		Packing
Item No.	Description	Conductor Spec.	Nom.Thick (mm)	Nom.Diam (mm)	Nom.Thick (mm)	Nom.Diam. (mm)	Packing
ALARM	Copper or CCA Screened Unscreened Rip cord or No Drain wire or No	270.2	0.22	1.05	0.45	3.1	Box Coil Drum Paper reel Plastic reel Wooden reel
		470.2	0.22	1.05	0.45	3.4
		670.2	0.22	1.05	0.5	4.1
		870.2	0.22	1.05	0.5	4.5
		1070.2	0.22	1.05	0.6	5.1
		1270.2	0.22	1.05	0.6	5.5
		1470.2	0.22	1.05	0.7	6.1
		1670.2	0.22	1.05	0.7	6.4
		2070.2	0.22	1.05	0.8	7.2

8)Solid Wire:

Item	Conductor Spec.	Insulation		Jacket		Packing
Item	Conductor Spec.	Nom.Thick.(mm)	Nom.Diam(mm)	Nom.Thick.(mm)	Nom.Diam.(mm)	Packing

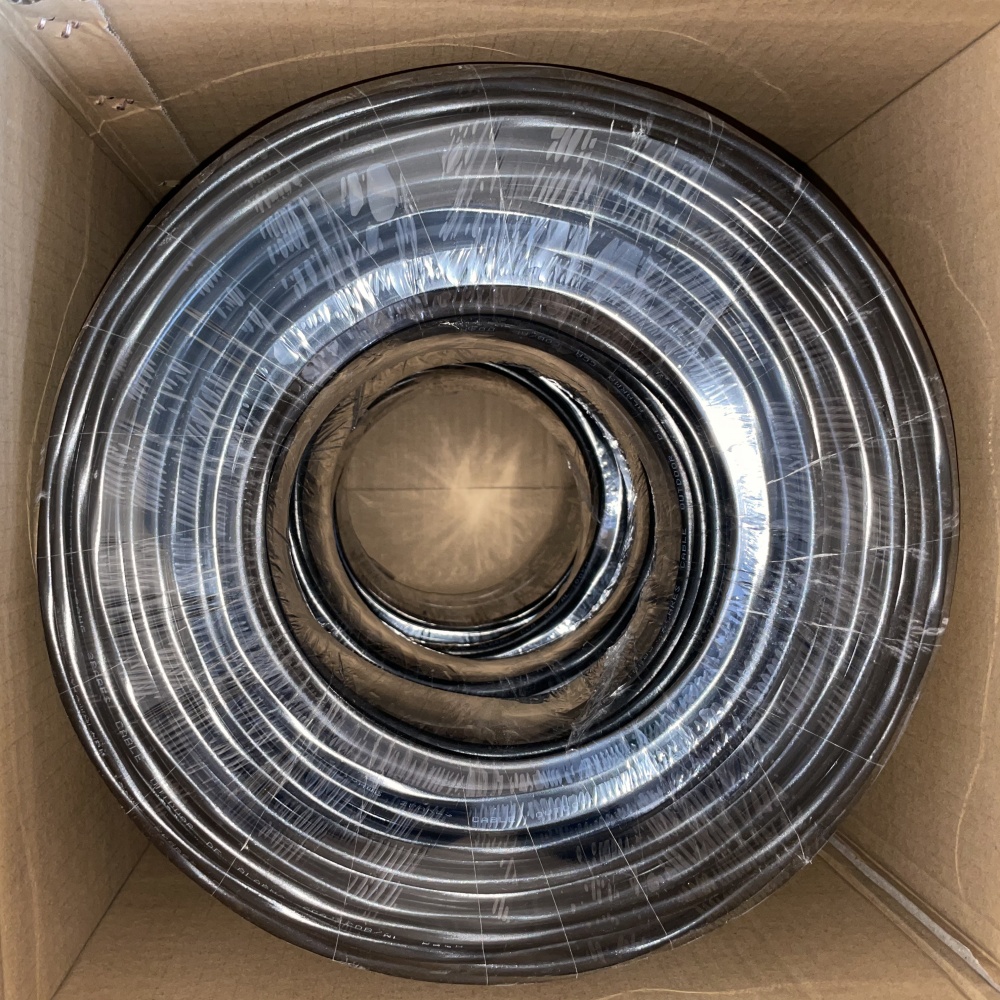

Fire Alarm	2*1.0	0.6	2.4	1.0	6.8	Box Coil Drum Paper reel Plastic reel Wooden reel
	2*1.5	0.7	2.8	0.8	7.2
	2*2.5	0.8	3.4	1.0	9
	4*0.5	0.4	1.6	1.2	6.2
	4*1.0	0.6	2..4	0.8	7.4
	4*1.5	0.7	2.8	0.8	8.3
	4*2.5	0.8	3.4	1.1	10.3

Application: These cables are designed for installation signal alarm and alarm systems.They allow the connection of contacts,detectors and sensors,infr-red as well asmicrowave or mixed technology to the switchboard.
