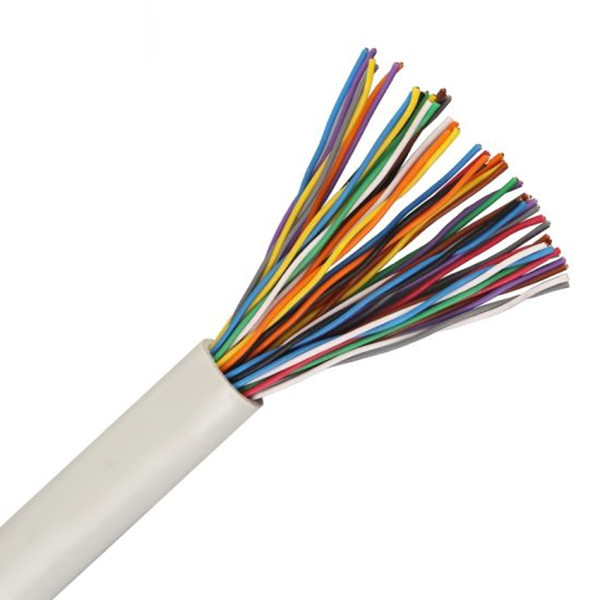

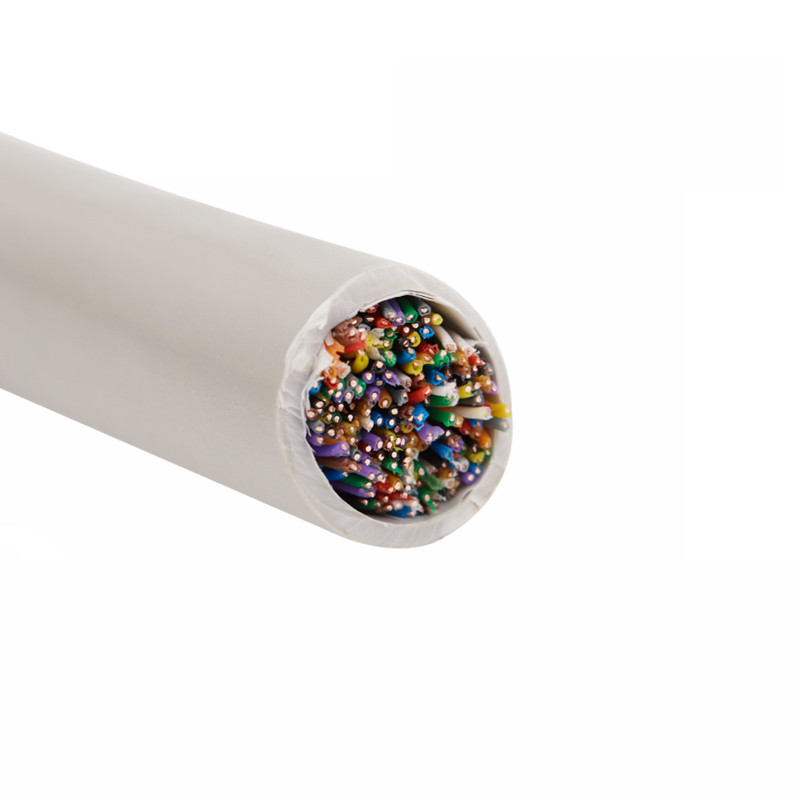

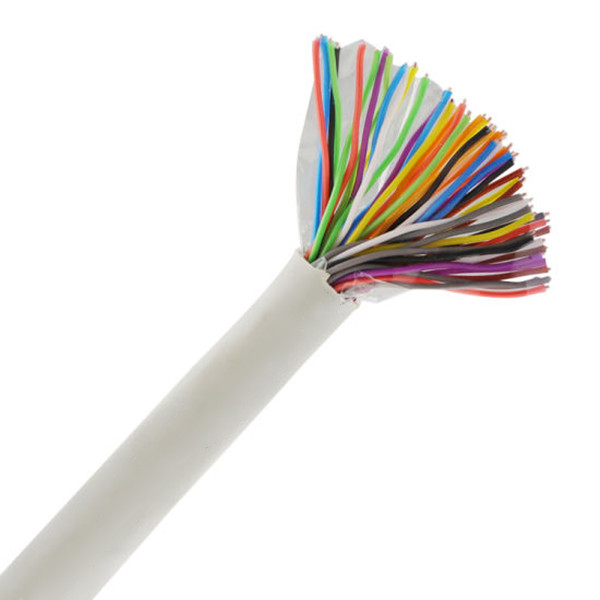

30 Pair

30 Pair
30 Pair 30 Pair 30 Pair 30 Pair 30 Pair
Quick Enquiry>>

30 Pair


Product Description


FEATURES
Meets EIA/TIA 568-B for category 3 requirements
Fire protection – IEC60332-1
Cable is used for Voice-Grade applications and indoor installation
CONSTRUCTION
Conductor: Bare Solid Copper
Conductor Dia.:0.50mm±0.005mm (24AWG)
Pair Insulation:Polyethylene   		 Pair Number:30Twisted Pairs
Pair Color Code:As per the standard color code
Outer Jacket: PVC/LSZH Jacket
Jacket Color:Grey RAL 9002 or as per request
TECHNICAL CHARACTERISTICS
Installation Temperature: 0°C to +60°C
Operating temperature: -20°C to +60°C
DC Resistance Unbalance :5%
Pair-to-Ground Capacitance Unbalance :330 pF/100 m
Capacitance:14pF/ft nominal  		 Maximum strand pitch: 100 mm
Minimum bend radius: 4 outer cable diameters
Dielectric Breakdown:1000 Volts DC Conductor to Conductor
Velocity of Propagation:PE=65%
Maximum Skew:45ns@100 meters
PACKAGING

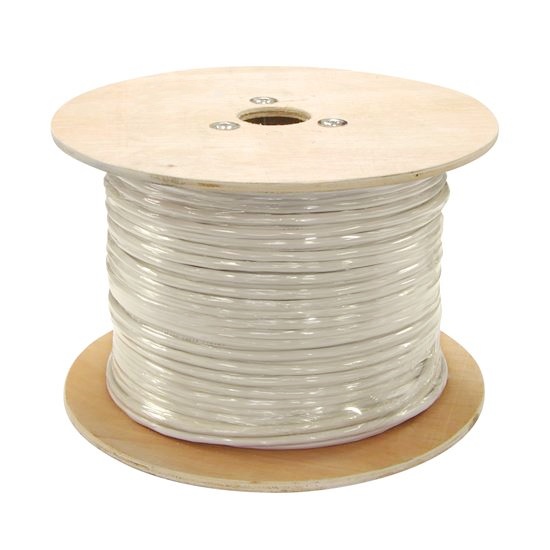

305m/1000ft Easy pulling box; 500m/wooden reel;1000m/wooden reel

ELECTRICAL CHARACTERISTICS

Max attenuation at 20°C10 Min worst pair to pair NEXT loss at 772 kHz Min worst pair Structural Return Loss (SRL)
At 772 kHz 2.2 dB/100 m  At 772 kHz 43 dB Up to 10 MHz 12dB
At 1 MHz 2.6 dB/100 m At 1 MHz 41 dB At 16 MHz 10dB
At 4 MHz 5.6 dB/100 m At 4 MHz 32 dB
At 8 MHz 8.5 dB/100 m  At 8 MHz 27 dB
At 10 MHz 9.7 dB/100 m  At 10 MHz 26 dB
At 16 MHz 13.1 dB/100 m  At 16 MHz 23 dB
