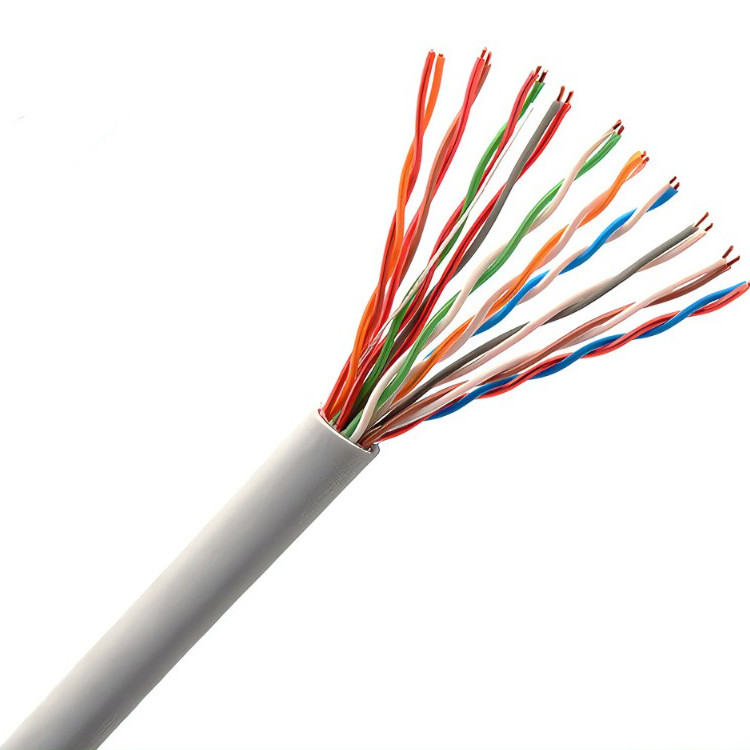

10 Pair

FEATURES
Meets EIA/TIA 568-B for category 3 requirements Fire protection – IEC60332-1 (CM) Cable is used for Voice-Grade applications and indoor installation
CONSTRUCTION
Telephone cable Conductor: Bare Solid Copper Conductor Dia.:0.50mm±0.005mm (24AWG) Pair Insulation:Polyethylene	Pair Number:10 Twisted Pairs Pair Color Code:As per the standard color code Outer Jacket: PVC/LSZH Jacket Jacket Color:Grey,White or as per request
TECHNICAL CHARACTERISTICS
Installation Temperature: 0°C to +60°C Operating temperature: -20°C to +60°C DC Resistance Unbalance :5% Pair-to-Ground Capacitance Unbalance :330 pF/100 m Capacitance:14pF/ft nominal	Maximum strand pitch: 100 mm Minimum bend radius: 4 outer cable diameters Dielectric Breakdown:1000 Volts DC Conductor to Conductor Velocity of Propagation:PE=65% Maximum Skew:45ns@100 meters
PACKAGING

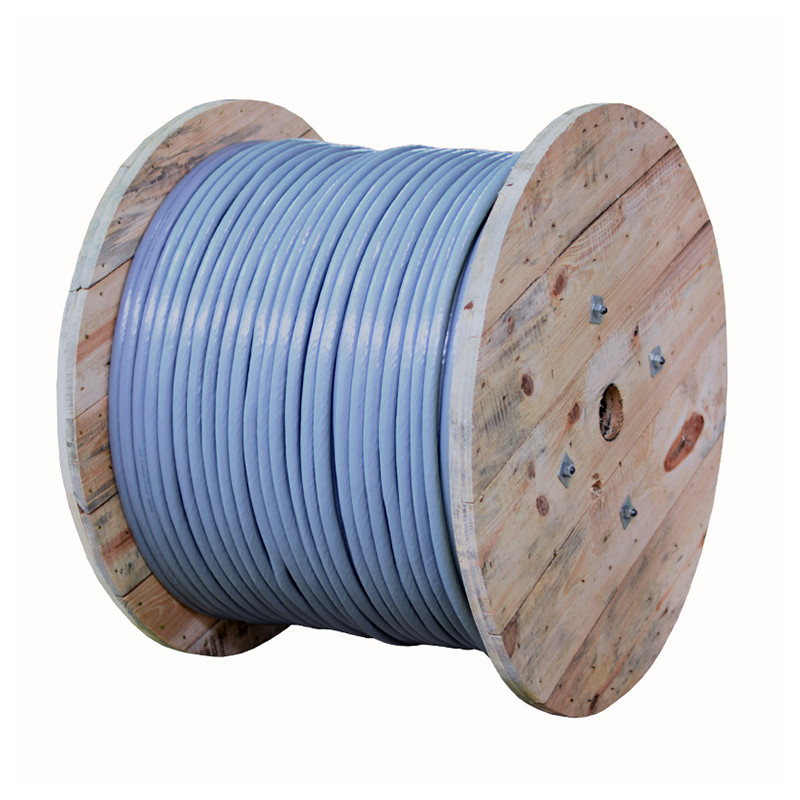

305m/1000ft wooden reel; 500m/wooden reel;1000m/wooden reel
