2 Pair

Application

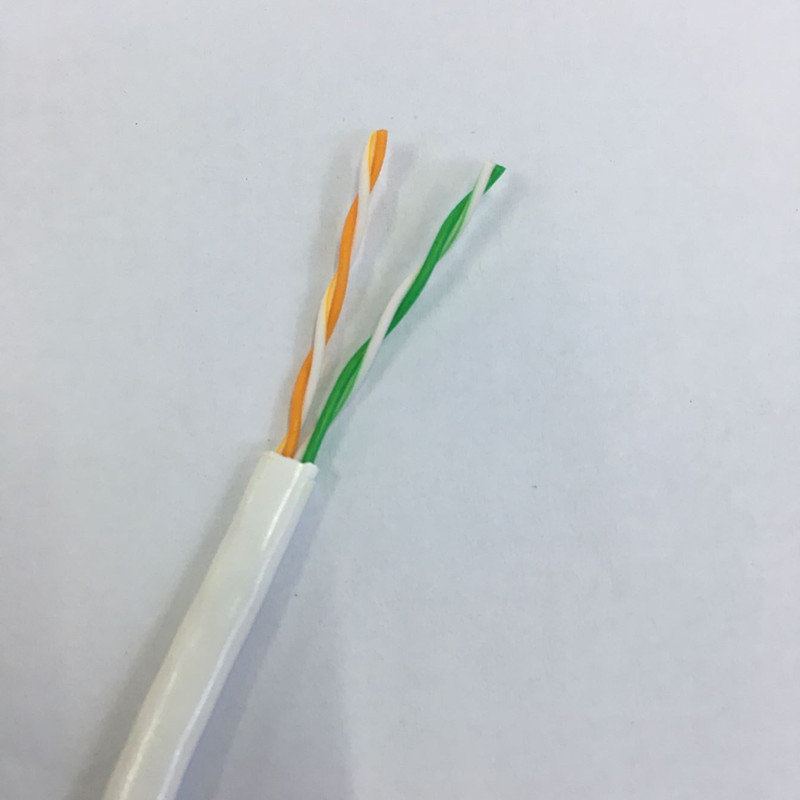

Category 3 U/UTP cable specification. It is tested up to 16 MHz frequency range. These cables are used for voice and data communications and can handle application bandwidths up to 16 MHz. Other uses for these cables include indoor use on customer premises for the interconnection of telephone key systems, PBX and intercom systems.

*SPECIFICATION*
Conductor
Material	Bare copper or CCA
Style	Solid
Conductor Diameter	0.45mm, 0.48mm, 0.5mm
Wire gauge	24AWG
Insulation
Material	HDPE
Nom. Insulation Thickness	0.15 mm
Insulation Diameter	0.9 mm
Insulation Color Code	Orange,white/orange; green,white/green
Jacket
Material	PVC or LSZH
Jacket Average Thickness	0.5 mm
Nom. Diameter	4.2 - 4.4mm
Color	White, Gray, Beige or request
General
Cable Type	Unshielded twisted pair

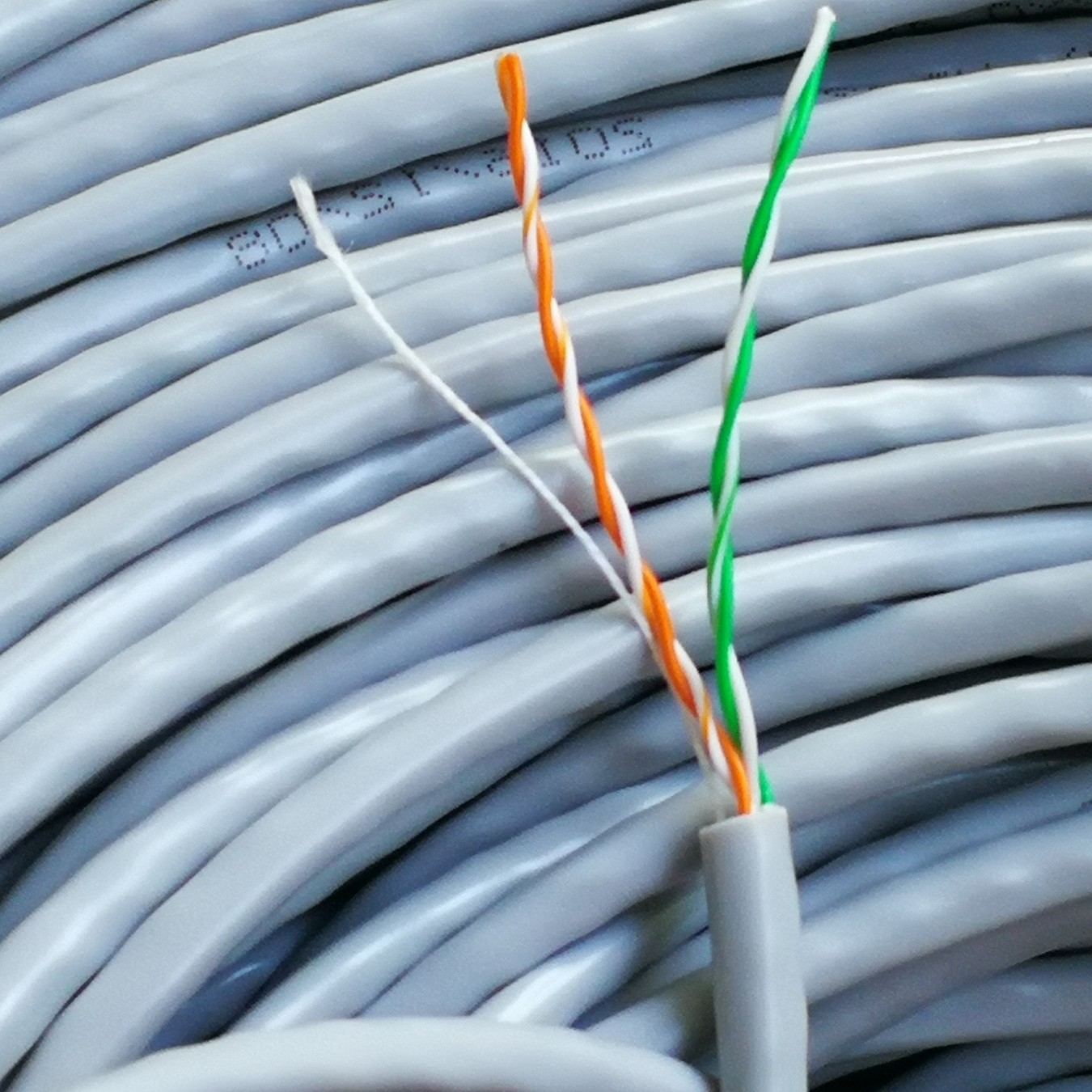

Rip Cord	Optional
Operating temperature	-20 °C to +70 °C
Max. Recommended Pulling Tension	66.7 N
Min. Bend Radius/ Minor Axis	35.4 mm
Nom. Conductor DC Resistance @ 20°C (Ω/km)	92.1
Max. Conductor DC Resistance @ 20°C (Ω/100m)	9.38
Nom. Velocity of Propagation	70 %
Nom. Delay (ns/m)	4.9
Max. Operating Voltage	300 V
Before Aging Tensile Strength(Mpa)	≥10.34
Elongation(%)	≥100
Tensile Strength(Mpa)	≥70% of unaged
Elongation(%)	≥45% of unaged

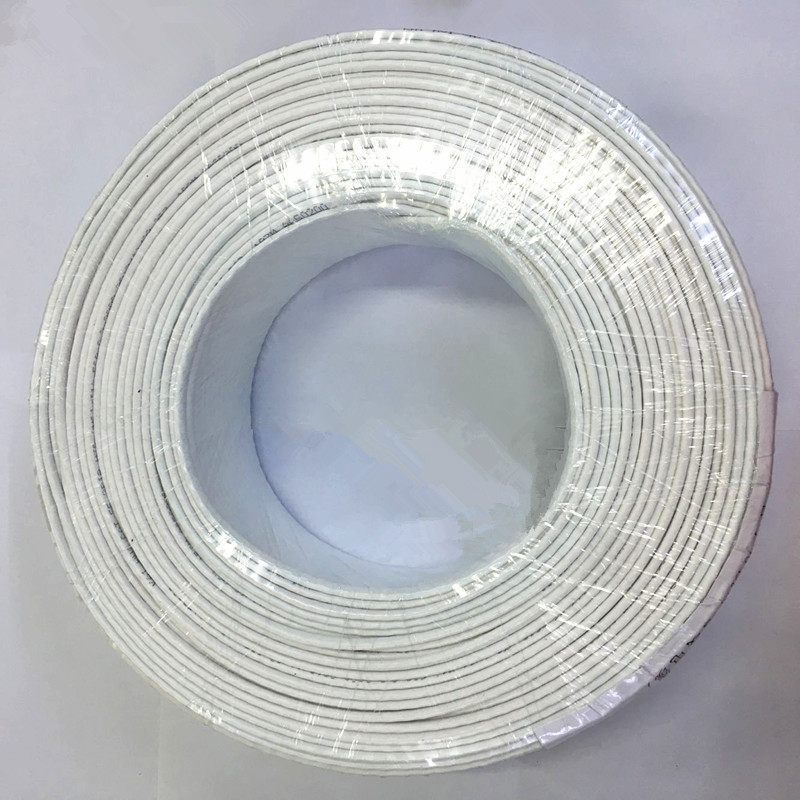

Packaging length	305m easy pull box
Packaging dimension	4235.536CM/Carton
