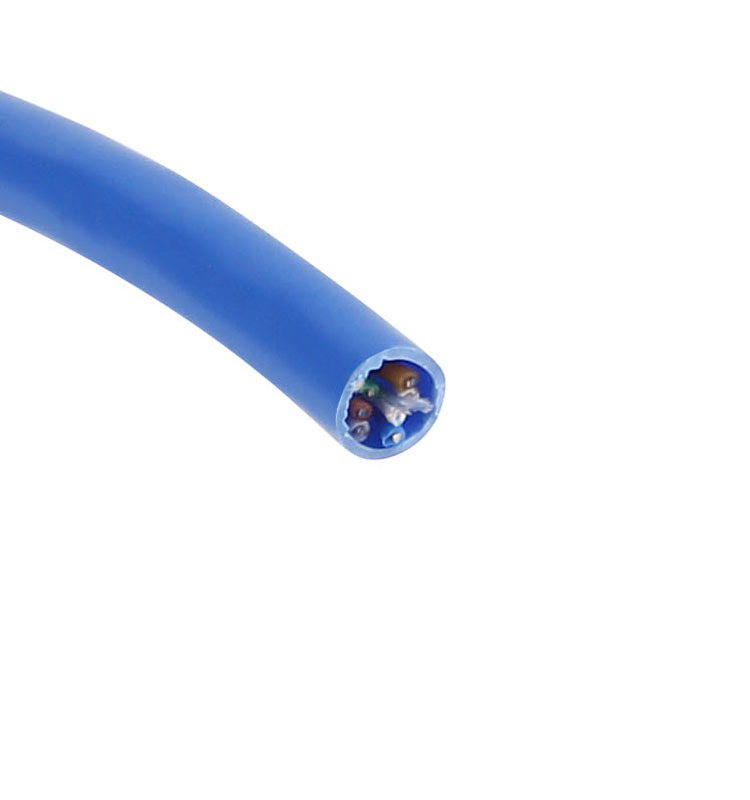

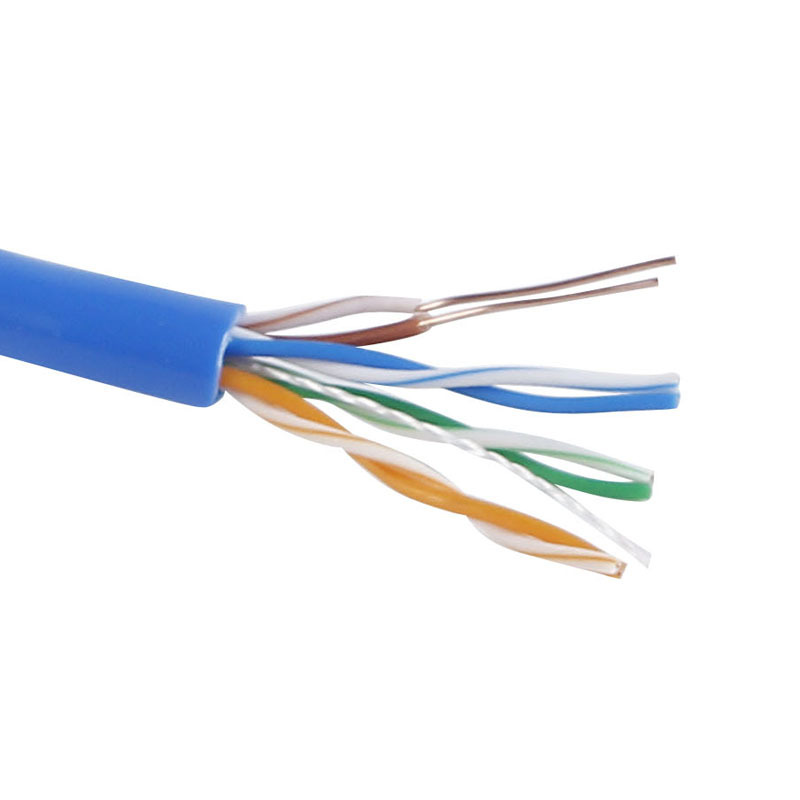

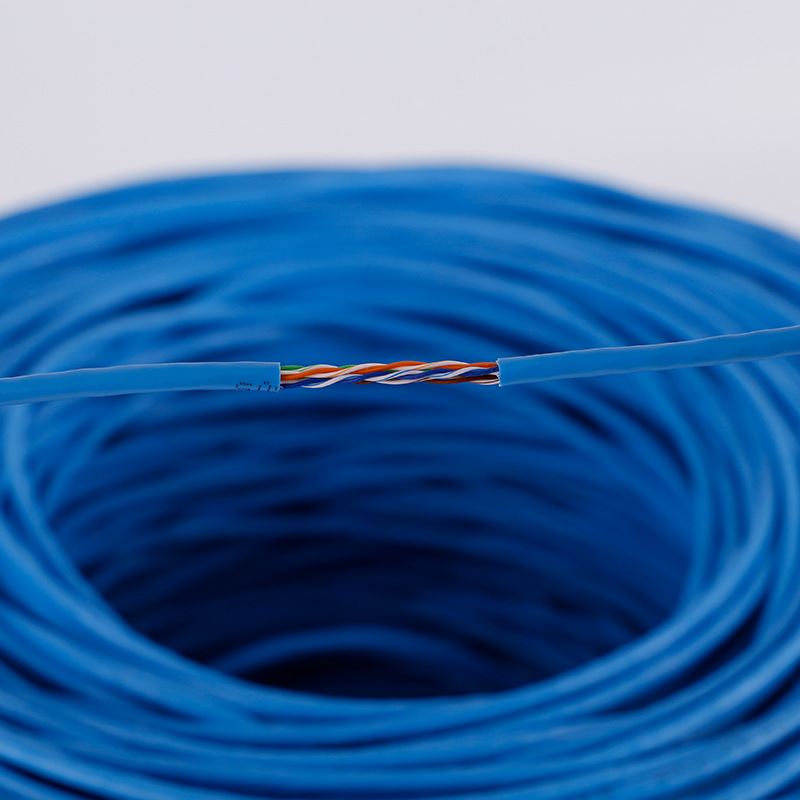

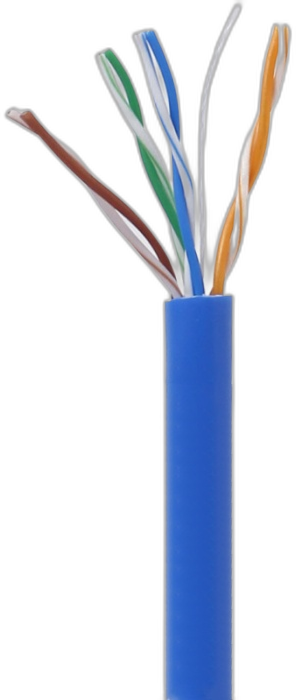

UTP Cat5e Blue

SPECIFICATION
Conductor
Material	Copper
Conductor Dia.	0.5mm
Wire gauge	24AWG
Insulation
Material	HDPE
Diameter	0.9+/-0.05mm
Color(4 Pairs)	Orange,white/orange; green,white/green; blue,white/blue; brown,white/brown
Jacket
Material	PVC
Diameter	5.0+/-0.05mm
Color	White, Blue, Gray, Green, Yellow, Beige or request
General
Installation Temperature	-10°C to +75°C
Operating temperature	-20°C to +75°C
DC Resistance Unbalance	5%
Pair-to-Ground Capacitance Unbalance	330 pF/100 m
Capacitance	14pF/ft nominal
Pulling strength	130N
Dielectric Breakdown	1000 Volts DC Conductor to Conductor
Velocity of Propagation	PE=65%
Maximum Skew	45ns@100 meters
Rated voltage	300V
Bandwidth	100MHz
Carried standard	TIA/EIA-568B
Packaging length	305M per easy pull box
Packaging dimension	4235.536CM/Carton
