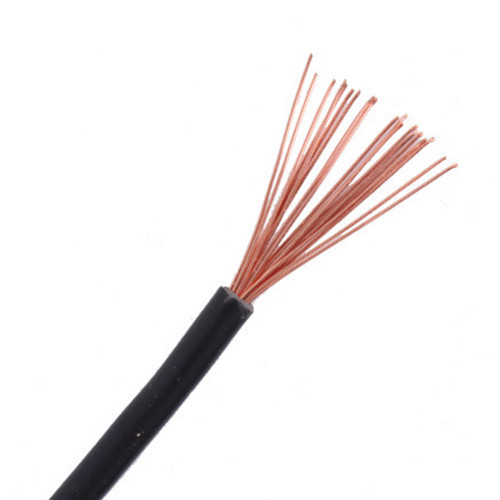

H07V-K Black

Product Description

1 Standard

GB 5023.11997 , JB 8734.15-1998, Q/ZEL 02-2002, GB 5023.17-1997, IEC227

2 Voltages U0/U:
450/750V300/500V300/300V.(600/1000V also available)

3 Application

The cable is suitable for use in power installations, fixed wiring or flexible

connections for electrical appliances like lighting, electronic equipment, instrument

and communication equipment with rated voltage 450/750V or less pvc insulated

electric cable, Copper Core electric cable PVC Insulation PVC Sheath Round Wire

4 Specification Size and Technical Data

Nominal sectional area mm2	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Condcutor Resistance at 20	Min insulated resistance at 70MΩ/km	Weight Kg/km
2.5	9/0.41	0.8	4.2	7.41	0.011	33.0
4	19/0.52	0.8	4.8	4.61	0.009	48.0
6	19/0.64	0.8	5.6	3.08	0.0084	68.0
10	49/0.52	1.0	7.6	1.83	0.0072	115.0
16	49/0.64	1.0	8.8	1.15	0.0062	176.0
25	98/0.58	1.2	11.0	0.727	0.0058	272.0
35	133/0.58	1.2	12.5	0.524	0.0052	384.0
50	133/0.68	1.4	16.5	0.387	0.0051	510.0
70	189/0.68	1.4	16.5	0.268	0.0045	714.0
95	259/0.68	1.	19.5	0.139	0.0035	965.0

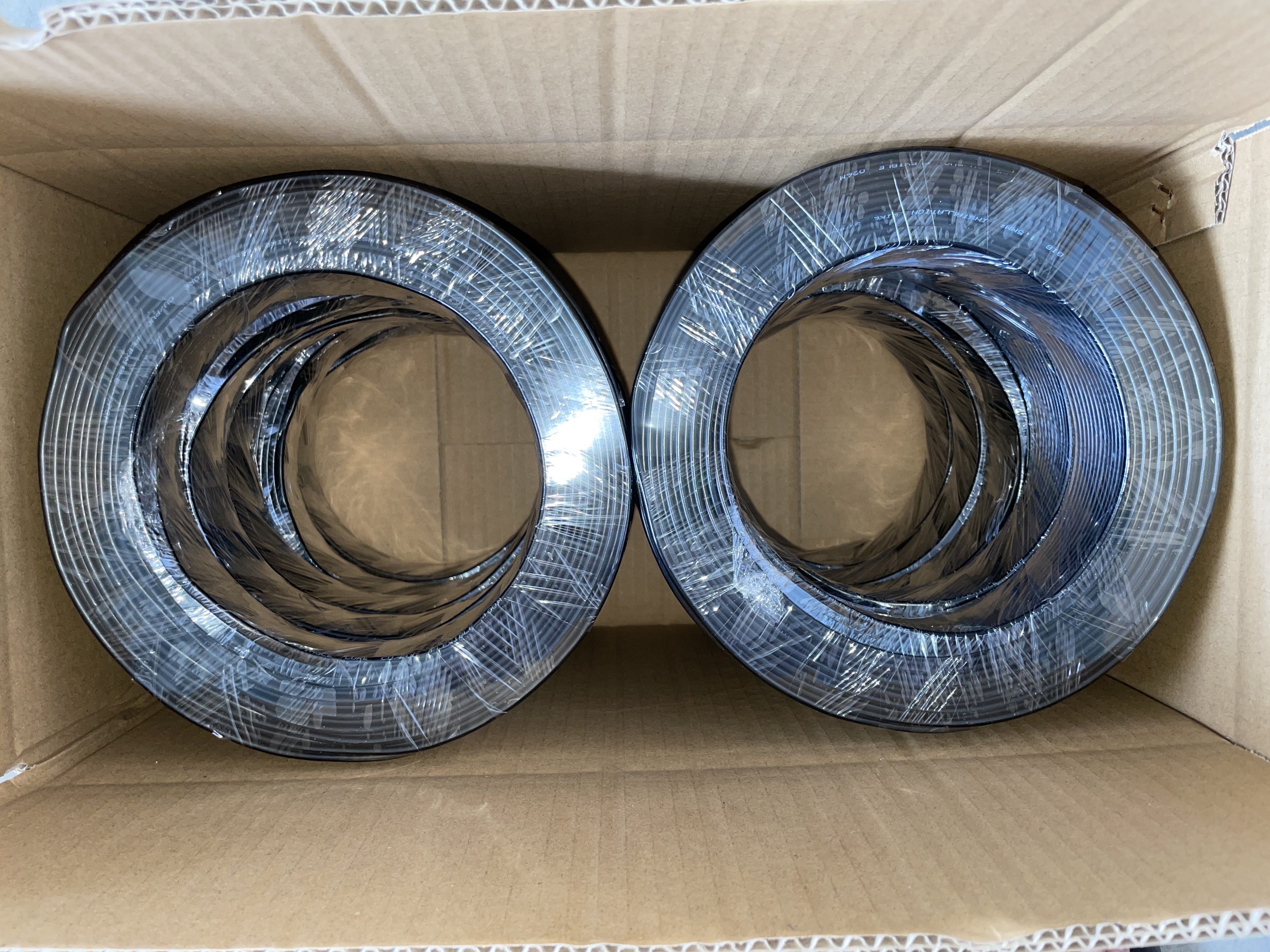

Packaging & Shipping
1. Shipping Details:
100M/ROLL 500M/ROLL
Lead tine: 10-20 working days or negociation
Transport Modes: Sea, Express(DHL,UPS,FEDEX, TNT) or request
