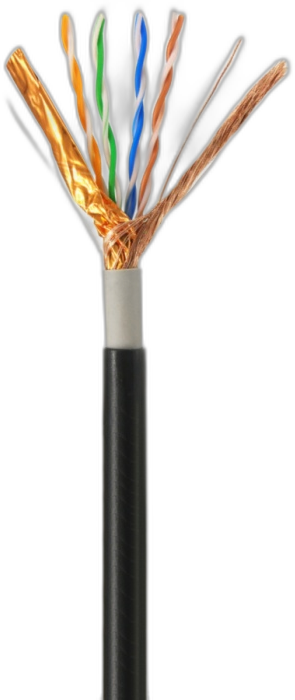

SFTP Cat5e Outdoor

SFTP Cat5e Outdoor

SPECIFICATION
Conductor
Material	Copper/CCA
Conductor Dia.	0.57mm
Wire gauge	23AWG
Insulation
Material	HDPE
Diameter	1.0+/-0.05mm
Color(4 Pairs)	Orange,white/orange; green,white/green; blue,white/blue; brown,white/brown

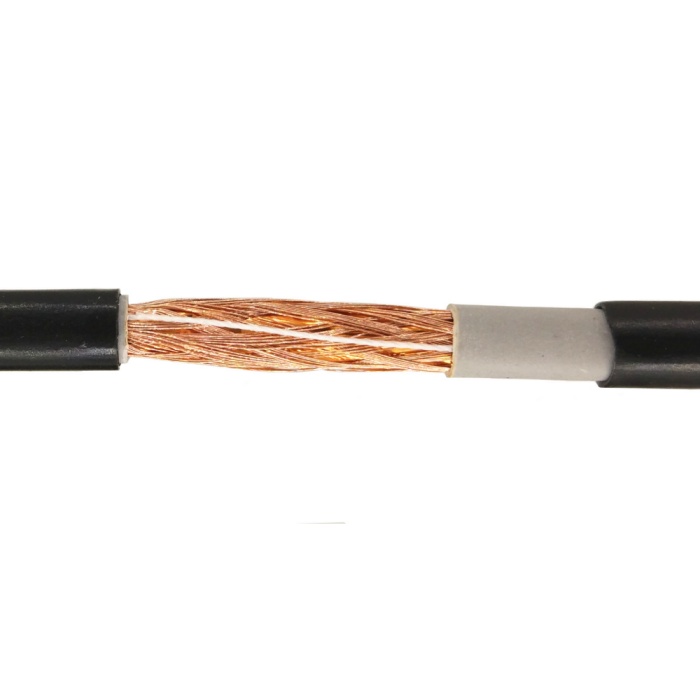

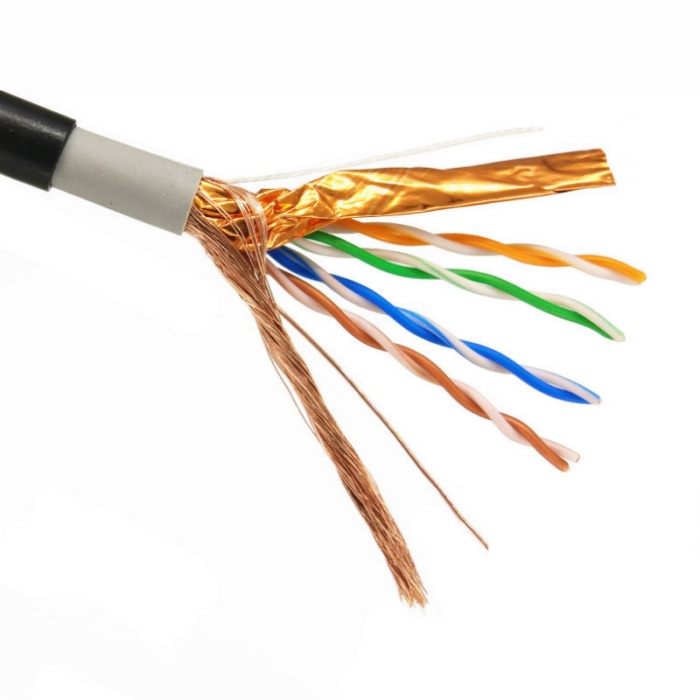

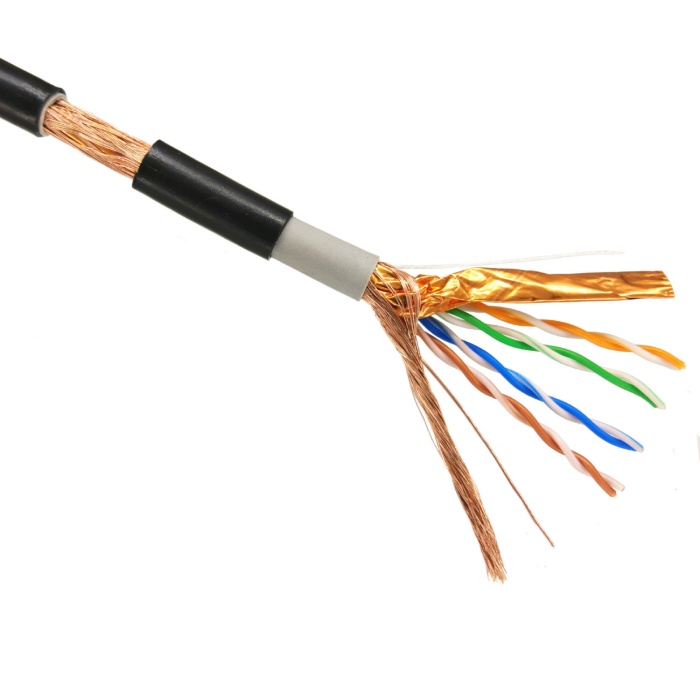

Shielding
Mylar Membrane	Yes
Shielded 1	Aluminum Foil
Shielded 1	CCA braid, copper braid
Drain Wire	Yes
Jacket
First Material	PVC
Second Material	PE
Diameter	6.3+/-0.05mm
Color	Black
Jacket
First Material	PVC
Second Material	PE
Diameter	5.8+/-0.05mm
Color	Black
General
Rip Cord	Yes
Cross	Yes
Installation Temperature	-10°C to +60°C
Operating temperature	-20°C to +75°C
DC Resistance Unbalance	5%
Pair-to-Ground Capacitance Unbalance	330 pF/100 m
Capacitance	14pF/ft nominal
Pulling strength	130N
Dielectric Breakdown	1000 Volts DC Conductor to Conductor
Velocity of Propagation	PE=65%
Maximum Skew	45ns@100 meters
Rated voltage	300V
Bandwidth	250MHz
Carried standard	TIA/EIA-568B

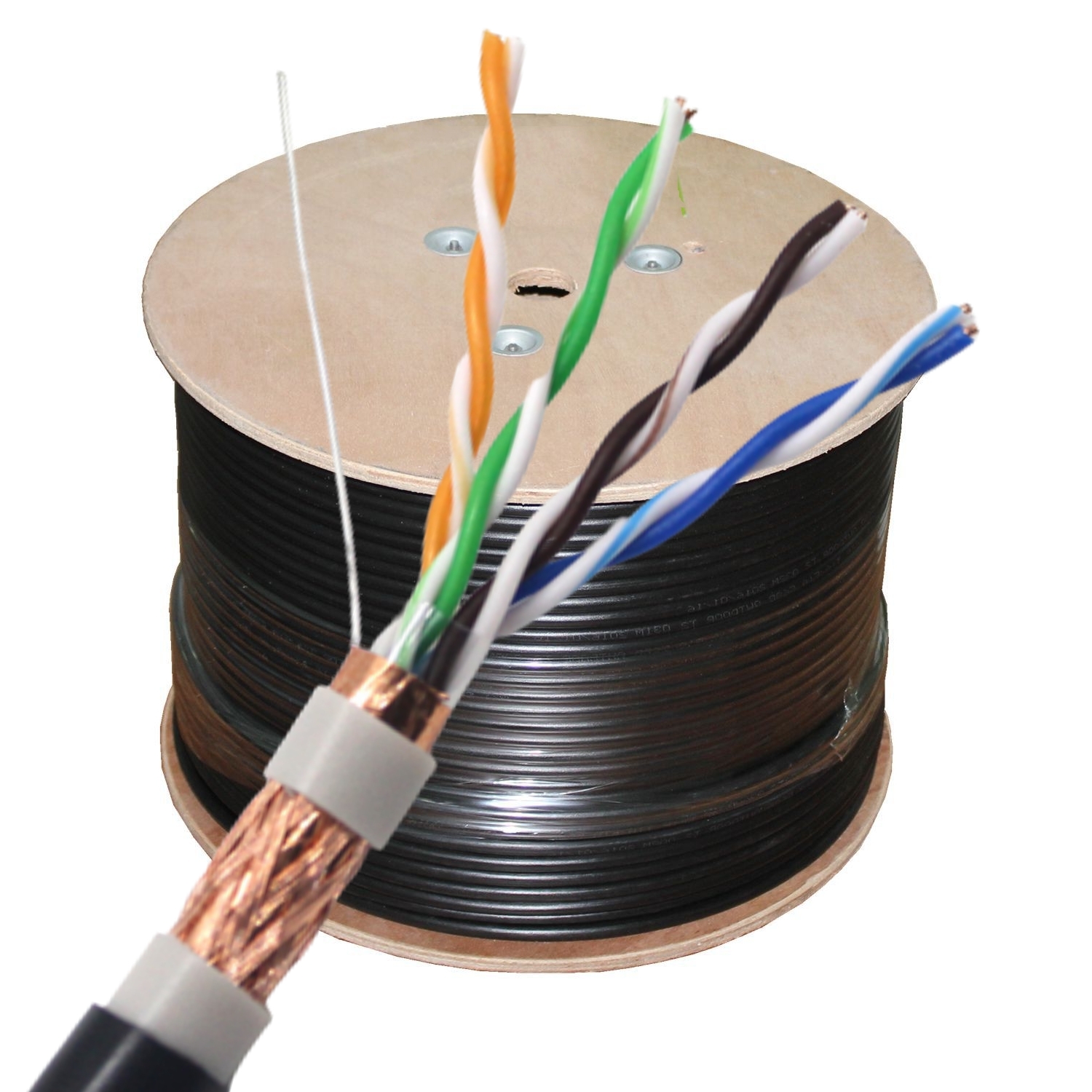

Packaging length	305m wooden drum
Packaging dimension	333330cm/carton
Certificates	CE & ROHS
