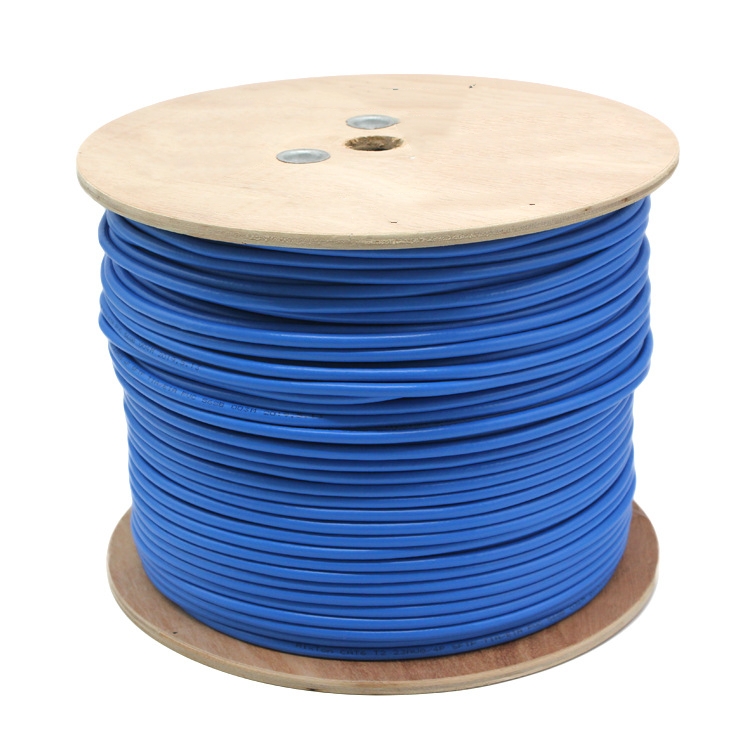

SFTP Cat6 Blue

Application
The most common use for an Ethernet cable is connecting a WiFi router or modem to the internet entry port or telephone line. It can also be used to hardwire devices like TVs, computers, CCTV cameras and other devices that require the internet or a network to work.

Conductor
Conductor	CCA
Conductor Diameter	0.56mm
Wire gauge	23AWG
Insulation
Material	HDPE
Diameter	1.0+/-0.05mm
Color(4 Pairs)	Orange,white/orange; green,white/green; blue,white/blue; brown,white/brown

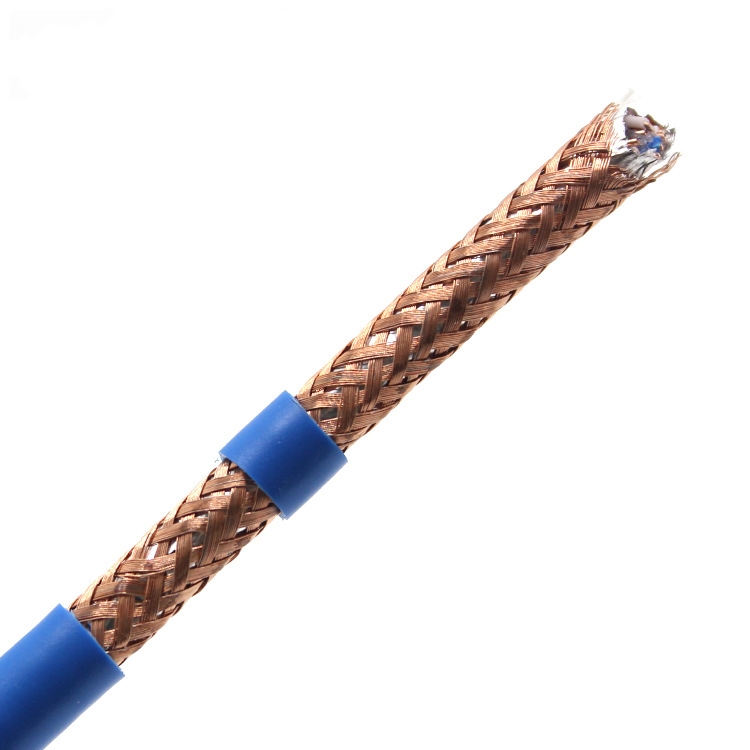

Shielded
Shield 1st	Aluminum foil
Shield 2nd	CCA braid or aluminum braid
Jacket
Material	PVC
Diameter	6.5+/-0.05mm
Color	White, Blue, Gray, Green, Yellow, Beige or request
General
Drain wire	Yes
Rip Cord	Yes
Cross	Yes
Installation Temperature	-10°C to +70°C
Operating temperature	-20°C to +70°C
DC Resistance Unbalance	5%
Pair-to-Ground Capacitance Unbalance	330 pF/100 m
Capacitance	14pF/ft nominal
Pulling strength	130N
Dielectric Breakdown	1000 Volts DC Conductor to Conductor
Maximum Skew	45ns@100 meters
Velocity of Propagation	PE=65%
Rated voltage	300V
Bandwidth	250MHz
Carried standard	TIA/EIA-568B
Packaging length	305M easy pull box
Packaging dimension	5039.540CM/Carton
