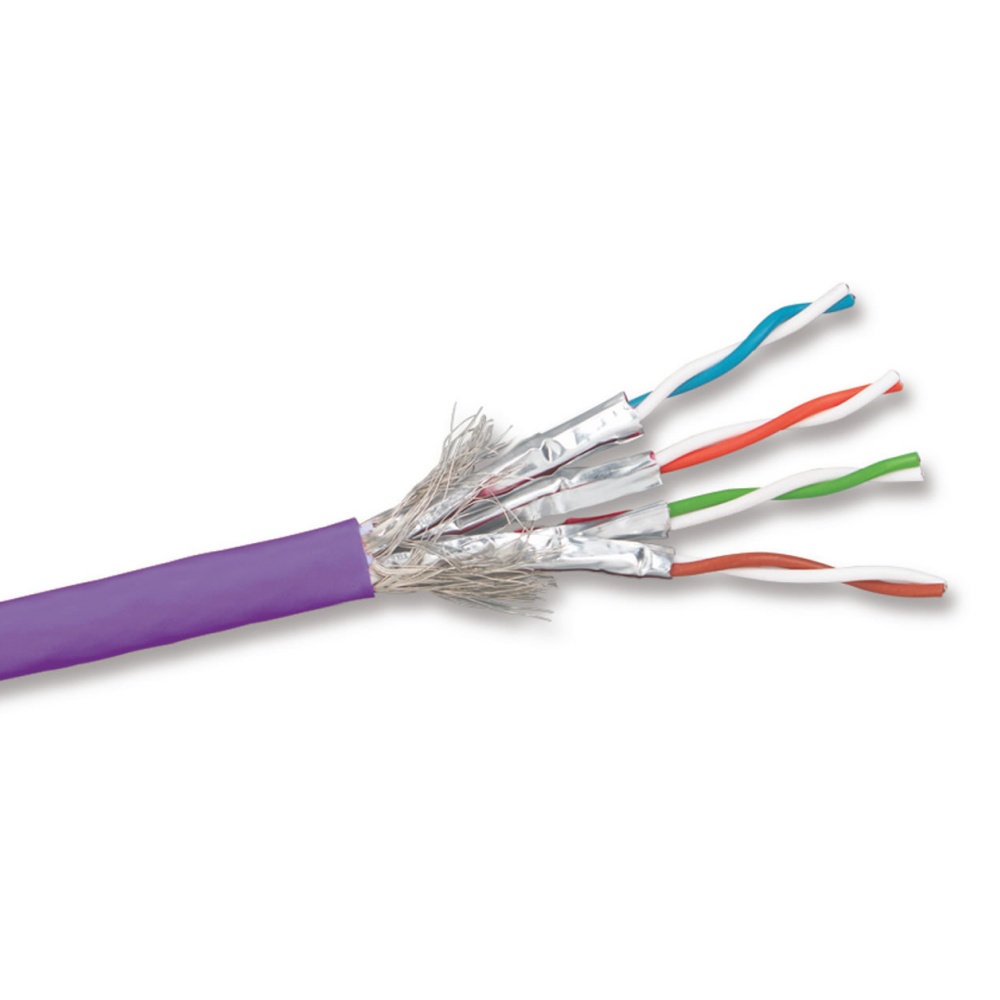

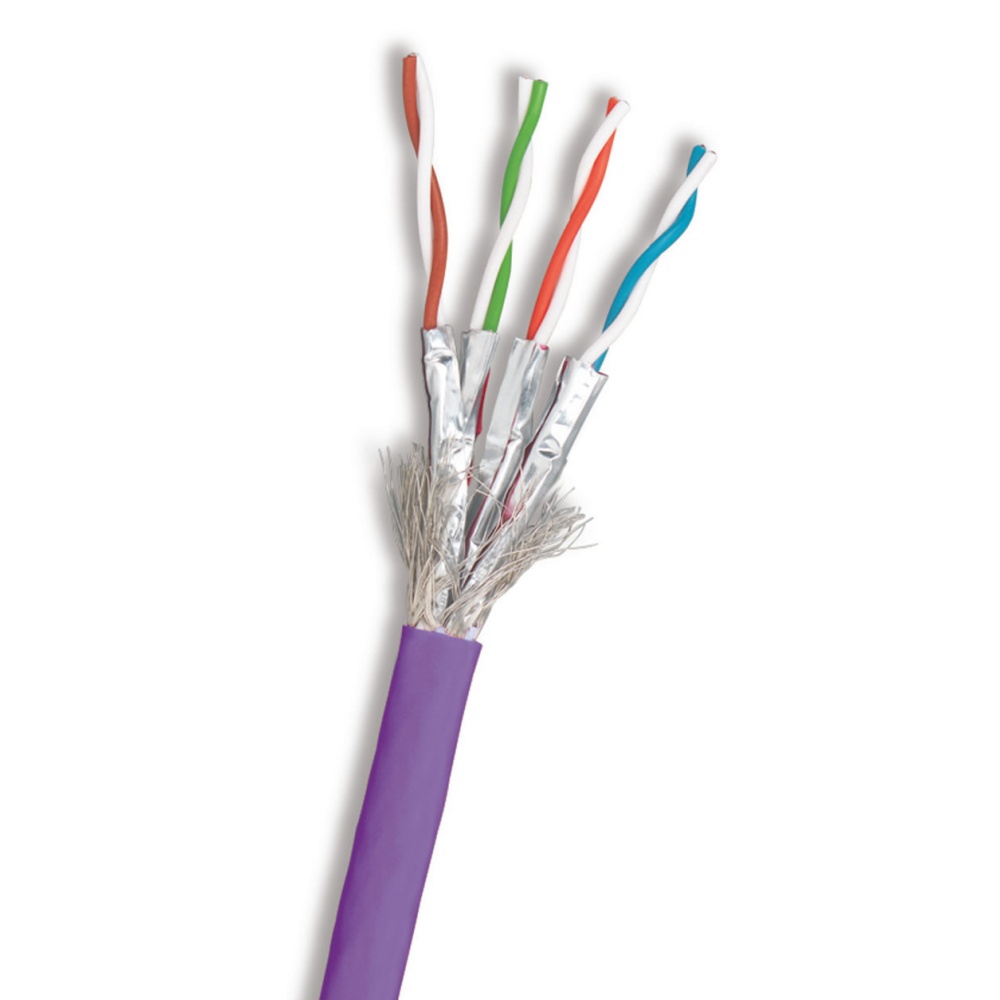

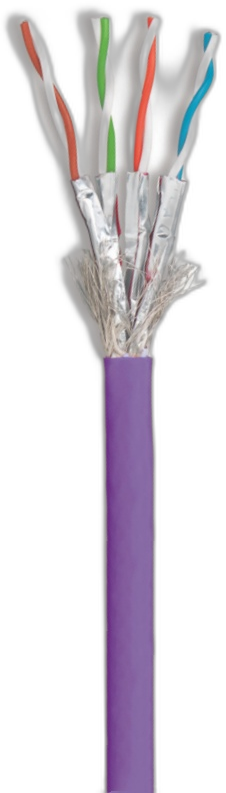

Cat7 Cable Purple

Specification
Application
* For high bandwidth, high speed applications.10 Gigabit Ethernet over 100m.
* Installationcable for generic cabling systems.
* Support current and future applications requiring Class D to F (e.g. 10GBase-T, 1000Base-T, 100Base-TX, ATM) as well as VoIP, PoE

Conductor
Conductor	Copper
Conductor Diameter	0.57mm/0.58mm/0.6mm
Wire gauge	22/23AWG
Insulation
Material	HDPE
Diameter	1.4mm+/-0.05mm
Color(4 Pairs)	Orange,white/orange; green,white/green; blue,white/blue; brown,white/brown
Shielding
Pair-Foil	Aluminium polyester + aluminium facing outside
Overall Braid	128*0.12mm AL-mg
Drain Wire	TC
Jacket
Material	PVC/LSZH
Diameter	7.5mm+/-0.05mm
Color	White, Blue, Gray, Green, Yellow, Orange or request
Mechanical & Electrical Details
Rip Cord	Nylon
Operating temperature	-20°C to +70°C
Cable Weight	19.1Kgs/305m
Max. Pull Tension	110N
Min. Bend Radius (installation)	8x OD.
Min. Bend Radius (installed)	4x OD.
Max. operating voltage	< 72V D.C. and < 50 A.C.
Characteristic Impedance	(1-100MHz) 100 ±15Ω (100-250MHz) 100 ±18Ω (250-500MHz) 100 ±25Ω
DC Resistance (Ω/100m)	≤ 9.5Ω/100m max.
Mutual capacitance	< 56 nF/km
Capacitance unbalance pair to ground	< 1600 pF/km
D.C. insulation resistance	≥ 5000 MΩ.km
Dielectric strength conductor – screen (2 sec)	2,5 kV D.C.
Max. continuous current per conductor (25°C)	1.5A
Resistance unbalance: within a pair	< 2 / < 4 %

Packing & Delivery

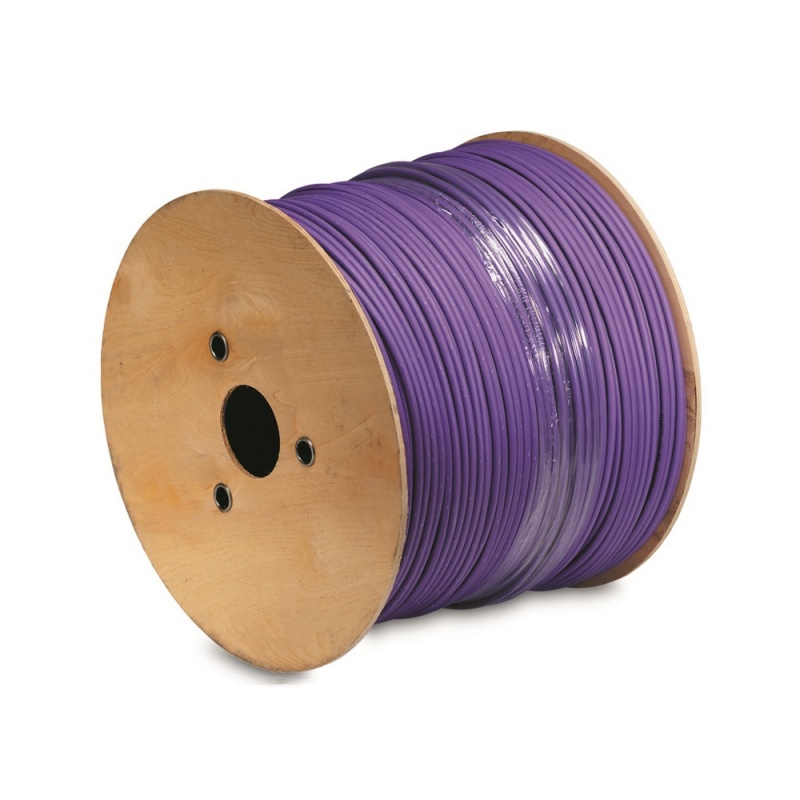

Normal packing: inner with 305m in wooden drum, outer with carton
Please advise if want to OEM service
Delivery: by sea

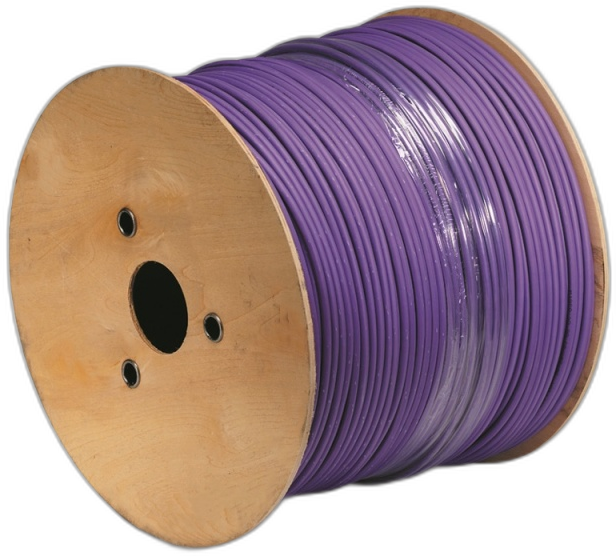

Prev:Cat7 Cable 305M Next:Cat7 Cable White
