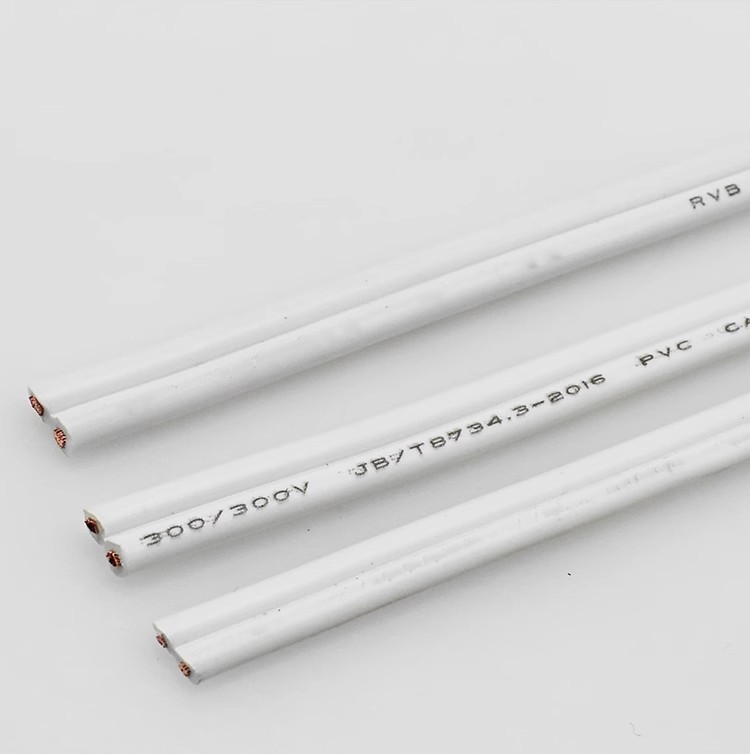

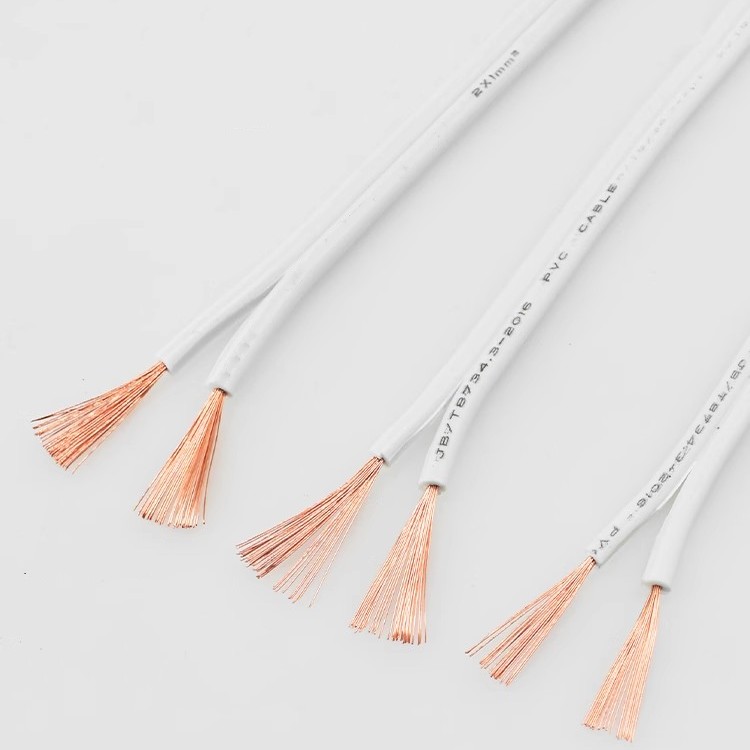

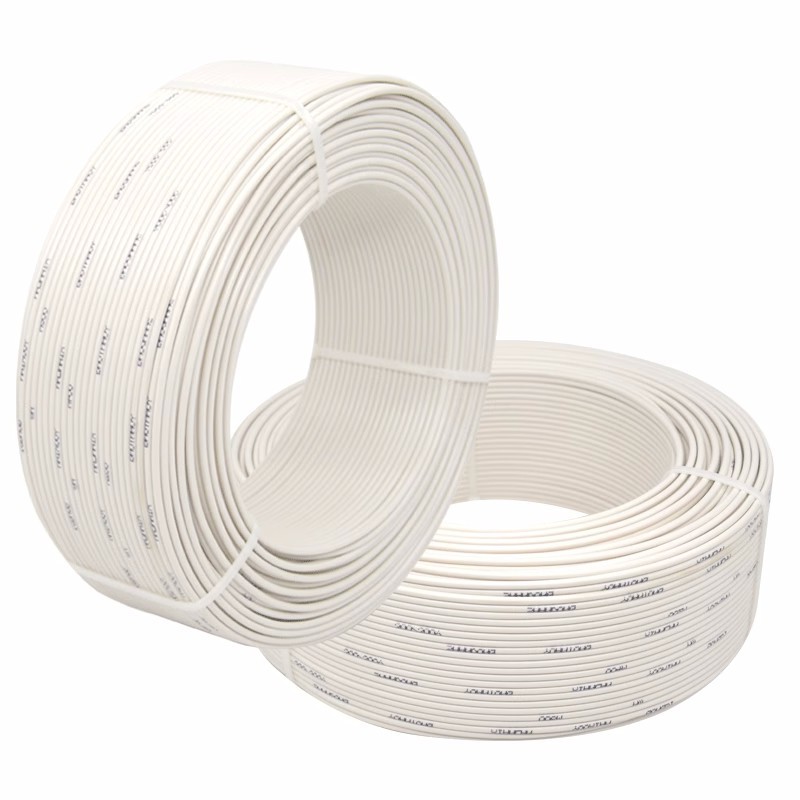

Speaker Wire White

DESCRIPTION
• Conductor: pure copper, CCA, TCCA, 30% copper., ect
• Rated temperature: 70°C
• Rated voltage: 300/300V
• Reference standard: GB/T5023
• Model: 60227IEC42 (RVB)
• Jacket: PVC or color-coded flame retardant PVC insulation

APPLICATION
Use in domestic premises and offices, for ordinary duty applications and household appliances, including in damp premises; (e.g. car audio, LED, home stereo HiFi, vacuum cleaners, washing machines, spin dryers, and refrigerators).

Model (Size)	Specification Description	Outer Dia. (mm)	Jacket/sheath	Color
0.35mm²	2CX20/0.15mm	O. D: 2.0×4.0	PVC	White
0.50mm²	2CX28/0.15mm	O. D: 2.2×4.4	PVC	White
0.75mm²	2CX42/0.15mm	O. D: 2.4×4.8	PVC	White
1.0mm²	2CX57/0.15mm	O. D: 3.0×6.0	PVC	White
1.5mm²	2CX85/0.15mm	O. D: 3.6×7.2	PVC	White
2.5mm²	2CX140/0.15mm	O. D: 4.2×8.4	PVC	White
4.0mm²	2CX224/0.15mm	O. D: 5.0×10.0	PVC	White
6.0mm²	2CX336/0.15mm	O. D: 5.5×11	PVC	White

AWG( size)	Specification Description	Outer Dia. (mm)	Jacket/sheath	Color
24AWG	2CX18/0.12mm	O. D: 1.8×3.6	PVC	White
22AWG	2CX18/0.15mm	O. D: 2.0×4.0	PVC	White
20AWG	2CX29/0.15mm	O. D: 2.2×4.4	PVC	White
18AWG	2CX46/0.15mm	O. D: 2.5×5.0	PVC	White
16AWG	2CX74/0.15mm	O. D: 3.0×6.0	PVC	White
14AWG	2CX118/0.15mm	O. D: 3.5×7.0	PVC	White
12AWG	2CX187/0.15mm	O. D: 4.5×9.0	PVC	White
10AWG	2CX297/0.15mm	O. D: 5.5×11.0	PVC	White

Prev:end Next:Black Red Speaker Wire

Products

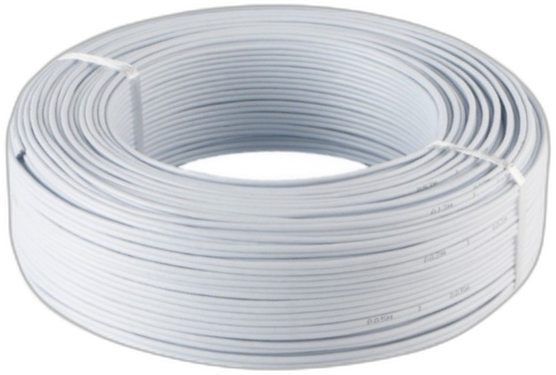

Speaker Wire White
