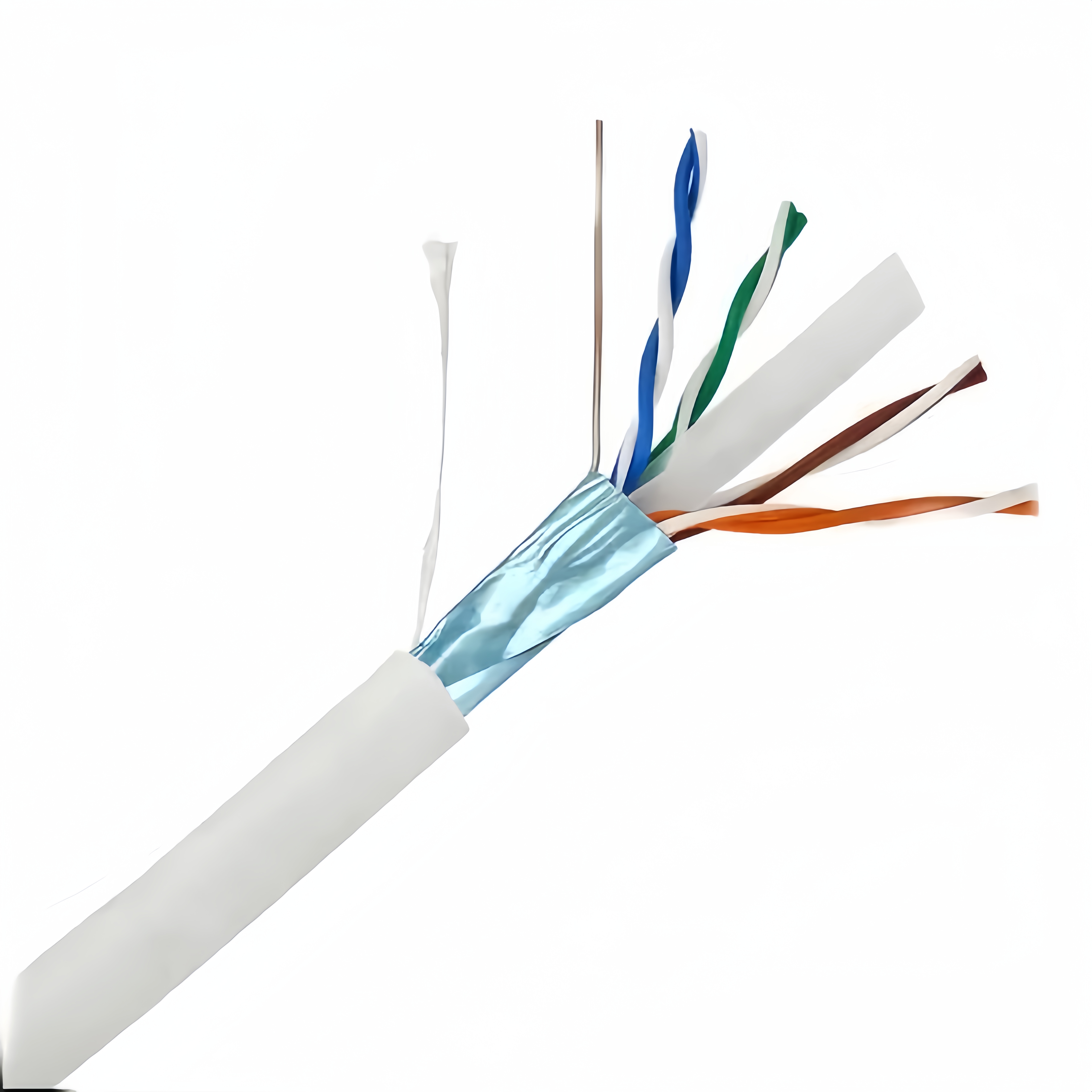

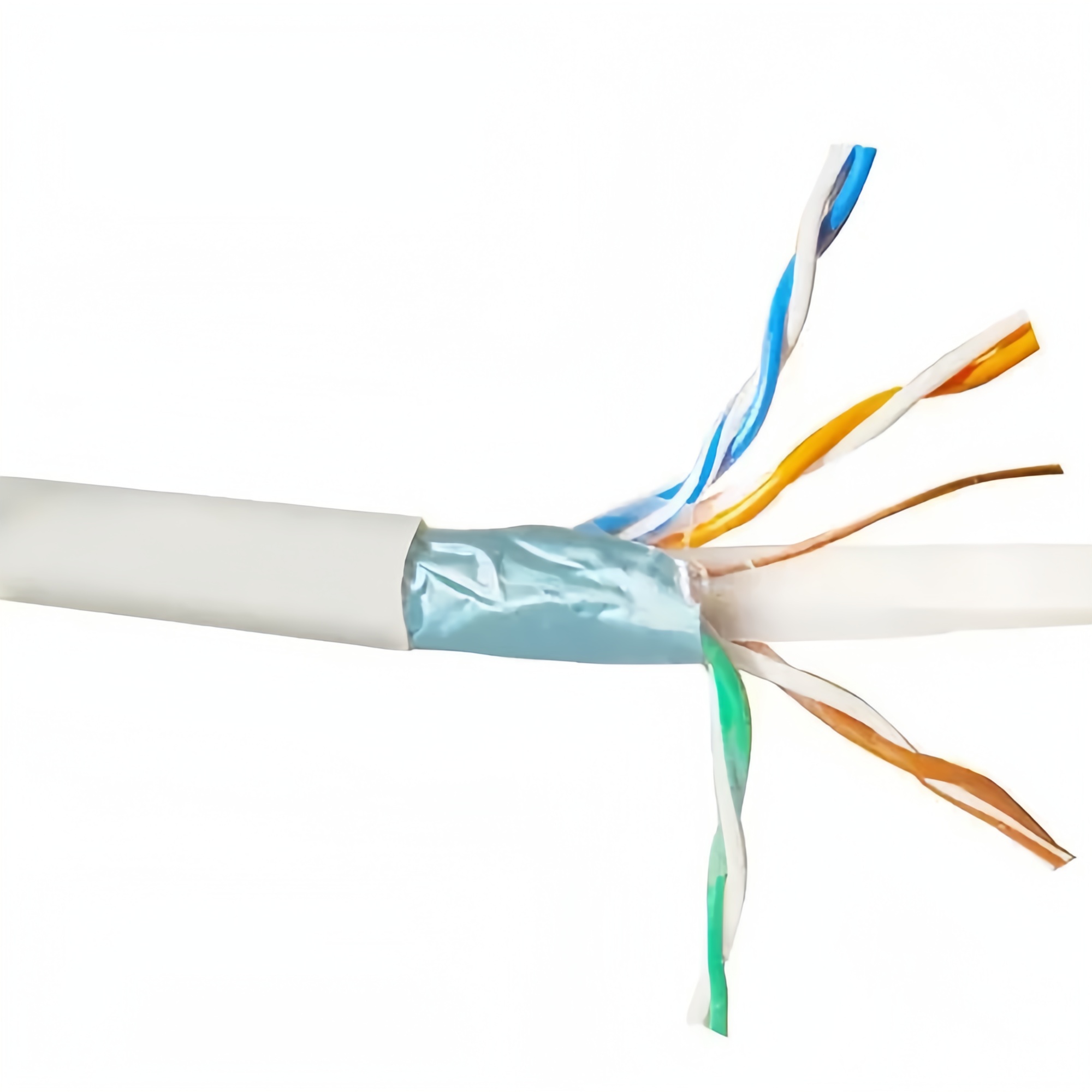

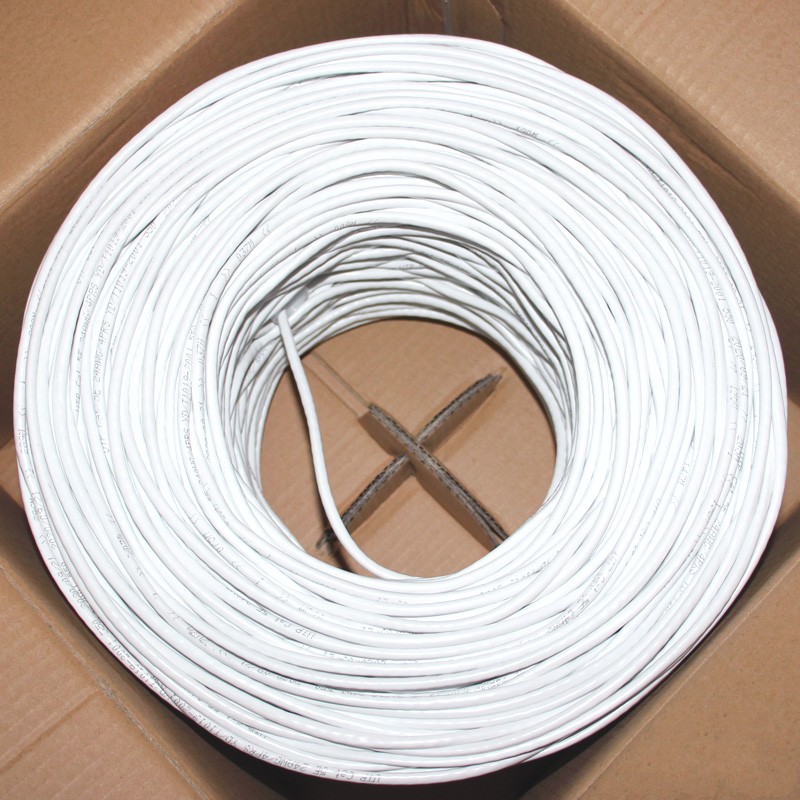

FTP Cat6 White

Description
1. This kind of cable use bare copper to be the center conduction with the Specification is 23 AWG and HDPE to be the dielectric. The jacket is made of PVC
2. This Cat. 6 cable electrical characteristics are exceed the lastest Cat. 6 standards.

Physical Charactrristics :
Conductor material: OFC, BC, CCC, CCA, CCA+CCC, CCA+CCS
Shield: UTP, FTP, SFTP
Conductor dimension: 0.5-0.58
Number of twisted pair: 4 Pair
Insulation: 1.0mm HD-PE
Jacket:  PVC
The external cable diameter: 5.8-7.5mm
Color: Different color is available
Operating temperature: -20° C+75° C

 Electrical Charactristics:
1. Impedance: 100± 15
2. Static electric capacity: Max: 17.1nf/kf
3. Resisitance: Max: 28.6/kf
4. Unbalance resisitance: Max 5%
5. Unbalance capacity: Max 330pF/100m
6. Roted communicate rate: 65%


Construction	Conductor Dim.mm	Core Dim.mm	Nos.of pairs	Shieding	Dim.of OD mm
UTP	0.56	0.91	4	-	5.8
FTP	0.56	1	4	AL-Foil	6.5
S-FTP	0.56	1	4	AL + braiding	7.5
