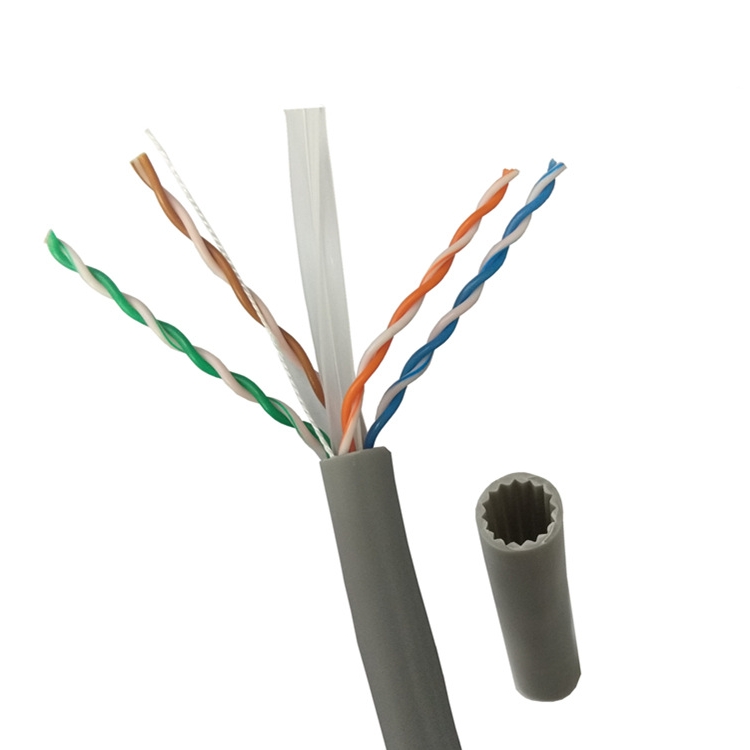

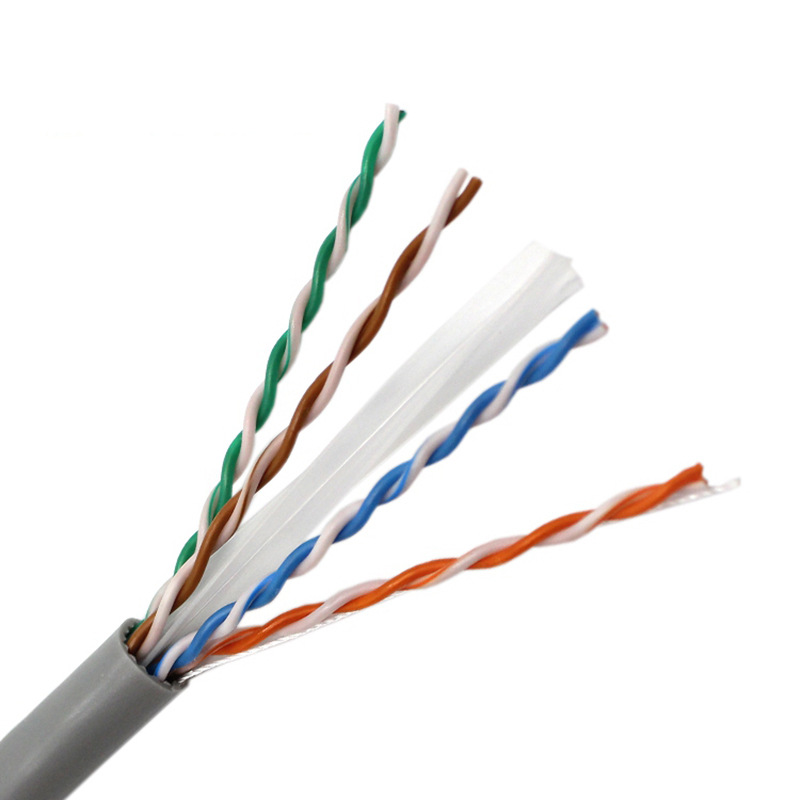

UTP Cat6 Gray

UTP Cat6 Gray
UTP Cat6 Gray UTP Cat6 Gray UTP Cat6 Gray UTP Cat6 Gray UTP Cat6 Gray UTP Cat6 Gray

UTP Cat6 Gray
 Product Description
SPECIFICATION
Conductor
Material Copper CCA
Conductor Dia. 0.57mm
Wire gauge 23AWG
Insulation
Material HDPE
Diameter 1.0+/-0.05mm
Color(4 Pairs) Orange,white/orange; green,white/green; blue,white/blue; brown,white/brown
Jacket
Material PVC
Diameter 5.8+/-0.05mm
Color White, Blue, Gray, Green, Yellow, Beige or request
General
Rip Cord Yes
Cross Yes
Installation Temperature -10°C to +75°C
Operating temperature -20°C to +50°C
DC Resistance Unbalance 5%
Pair-to-Ground Capacitance Unbalance 330 pF/100 m
Capacitance 14pF/ft nominal
Pulling strength 130N
Dielectric Breakdown 1000 Volts DC Conductor to Conductor
Velocity of Propagation PE=65%
Maximum Skew 45ns@100 meters
Rated voltage 300V
Bandwidth 250MHz
Carried standard TIA/EIA-568B

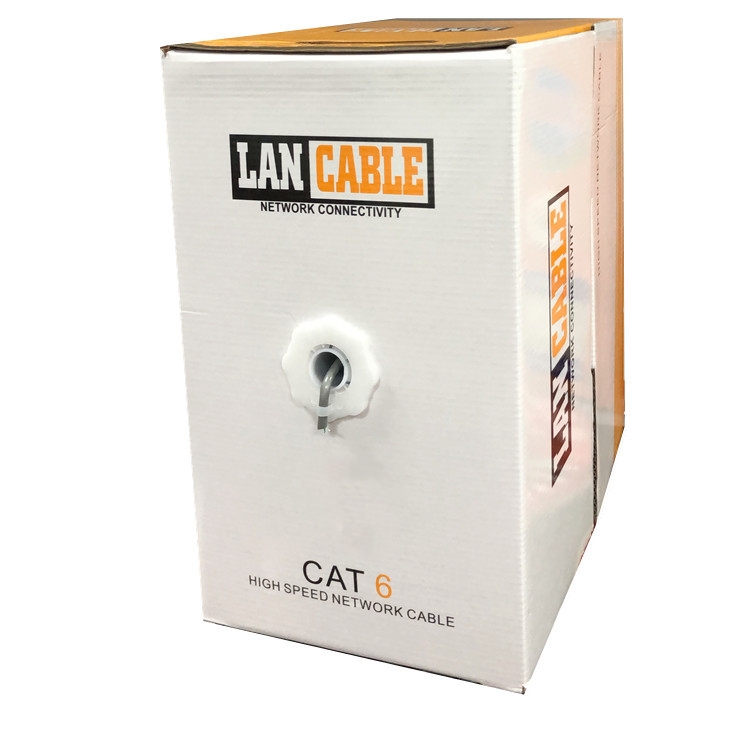

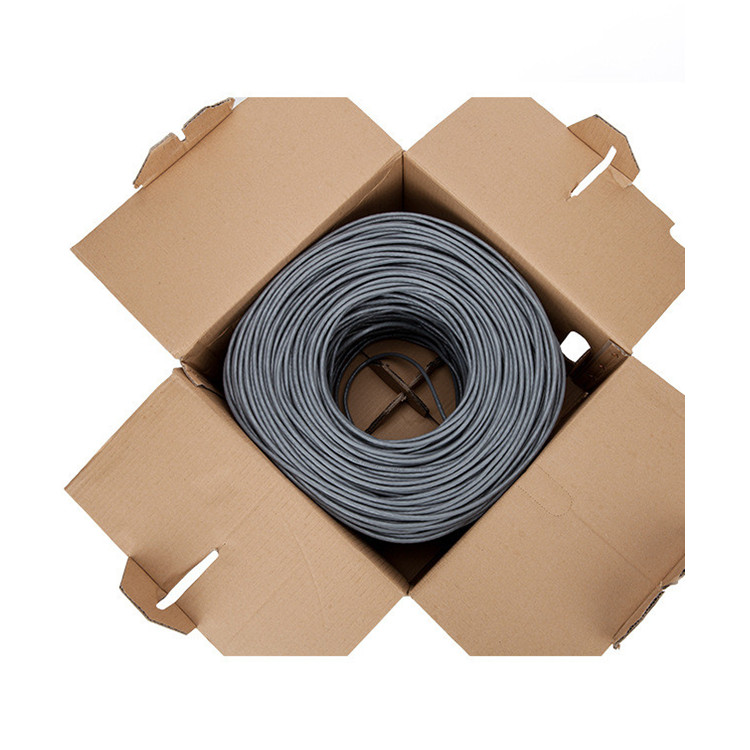

Packaging length 305M per easy pull box
Packaging dimension 44*40.5*41CM/Carton
