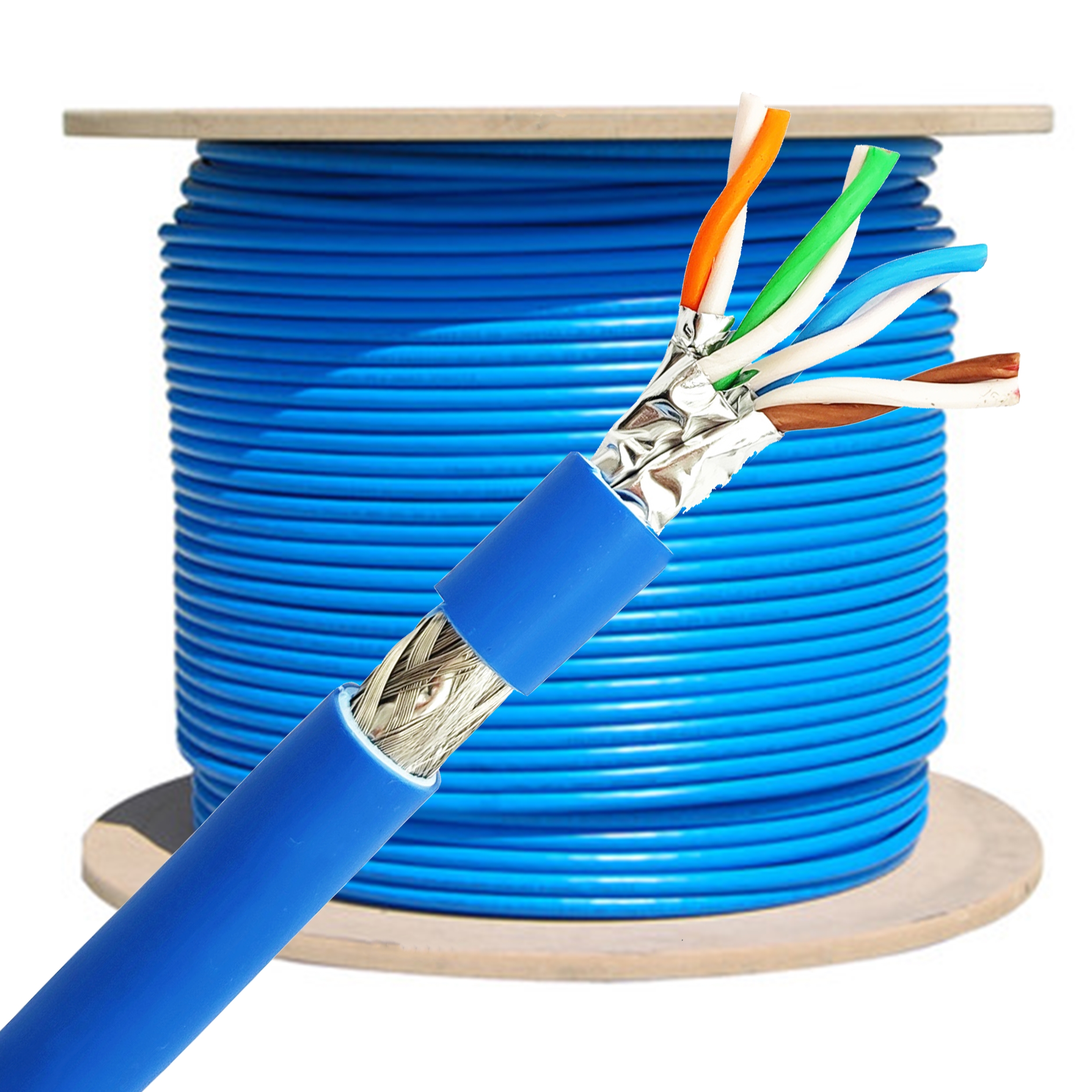

Cat6A Blue

Application
Category 6A S/FTP cables are specifically designed to deliver robust standards-based performance ensuring optimum bandwidth for today’s high speed network applications. The cable is designed to support horizontal networking applications over distances up to 100 meters.

Conductor
Conductor	Copper
Conductor Diameter	0.57mm
Wire gauge	23AWG
Insulation
Material	HDPE
Diameter	1.3+/-0.05mm
Color(4 Pairs)	Orange,white/orange; green,white/green; blue,white/blue; brown,white/brown
Shielding

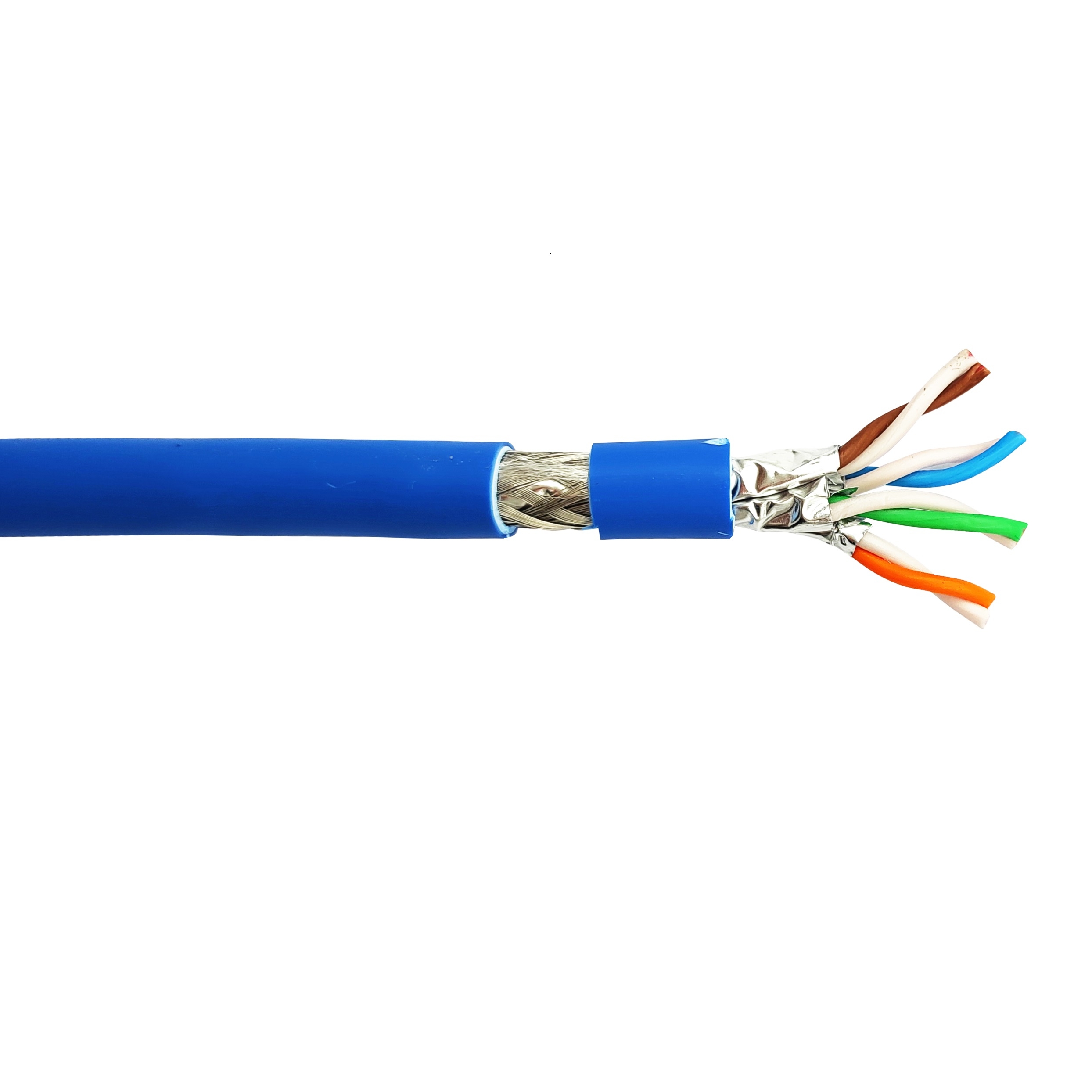

Details	S/FTP, An aluminized polyester tape applied with a 15% minimum overlapat each pair, the overall 4 pairs are shielded with aluminum-magnesiumalloy braiding, 64 x 0.12mm, coverage 40%.
Drain Wire	TC
Jacket
Material	PVC/LSZH
Diameter	7.5mm+/-0.05mm
Color	White, Blue, Gray, Green, Yellow, Orange or request
Mechanical & Electrical Details
Rip Cord	Yes
Operating temperature	-20°C to +75°C
Bulk Cable Weight	65 Kg/km
Max. Pull Tension	100N
Min. Bend Radius (installation)	8x OD.
Min. Bend Radius (installed)	4x OD.
Cold Bend	No crack @-20℃ x 4hrs
Characteristic Impedance	(1-100MHz) 100 ±15Ω (100-250MHz) 100 ±18Ω (250-500MHz) 100 ±25Ω
DC Resistance (Ω/100m)	≤ 9.5Ω/100m max.
Resistance Unbalance (%)	≤ 2%
Delay Skew (ns/100m)	≤ 25ns/100m
Nominal Velocity of Propagation (%)	70%
Propagation Delay (Nominal)	535ns/100m at 500MHz
Insulation Resistance (500V d.c)	≥ 500MΩ/KM
Test Voltage (d.c. for 1 minute)Conductor /Conductor	1000V
