FTP Cat6 Outdoor

Application
The most common use for an Ethernet cable is connecting a WiFi router or modem to the internet entry port or telephone line. It can also be used to hardwire devices like TVs, computers, CCTV cameras and other devices that require the internet or a network to work.

Conductor
Conductor	Copper
Conductor Diameter	0.56mm
Wire gauge	23AWG
Insulation
Material	HDPE
Diameter	1.0+/-0.05mm

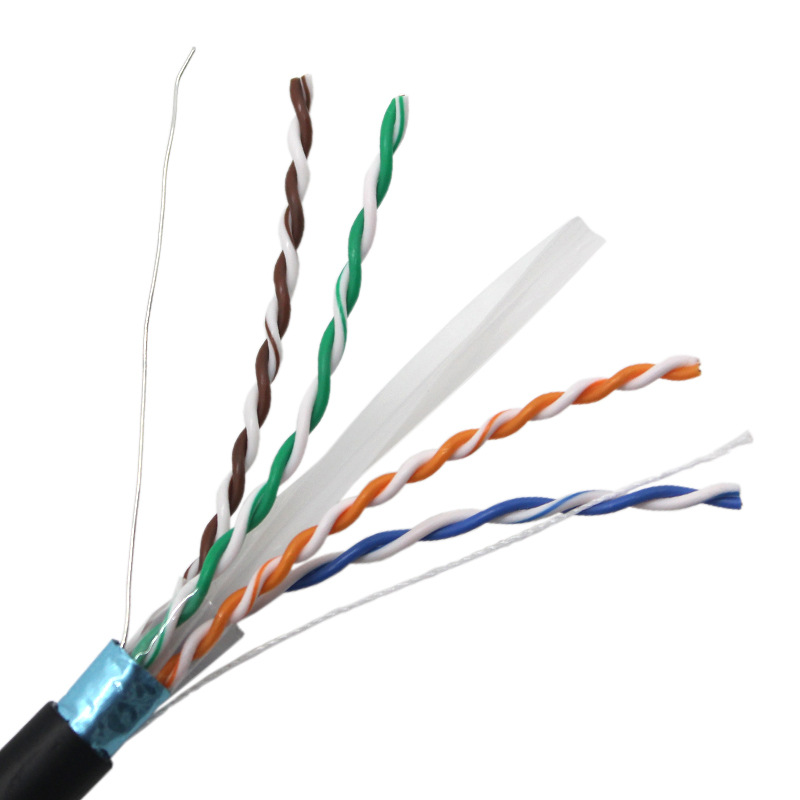

Color(4 Pairs)	Orange,white/orange; green,white/green; blue,white/blue; brown,white/brown
Jacket
Material	Single PE or double PVC + PE
Diameter	6.5+/-0.05mm
Color	White, Blue, Gray, Green, Yellow, Beige or request
General
Rip Cord	Yes
Cross	Yes
Installation Temperature	-10°C to +60°C
Operating temperature	-20°C to +60°C
DC Resistance Unbalance	5%
Pair-to-Ground Capacitance Unbalance	330 pF/100 m
Capacitance	14pF/ft nominal
Pulling strength	130N
Dielectric Breakdown	1000 Volts DC Conductor to Conductor
Maximum Skew	45ns@100 meters
Velocity of Propagation	PE=65%
Rated voltage	300V
Bandwidth	250MHz
Carried standard	TIA/EIA-568B

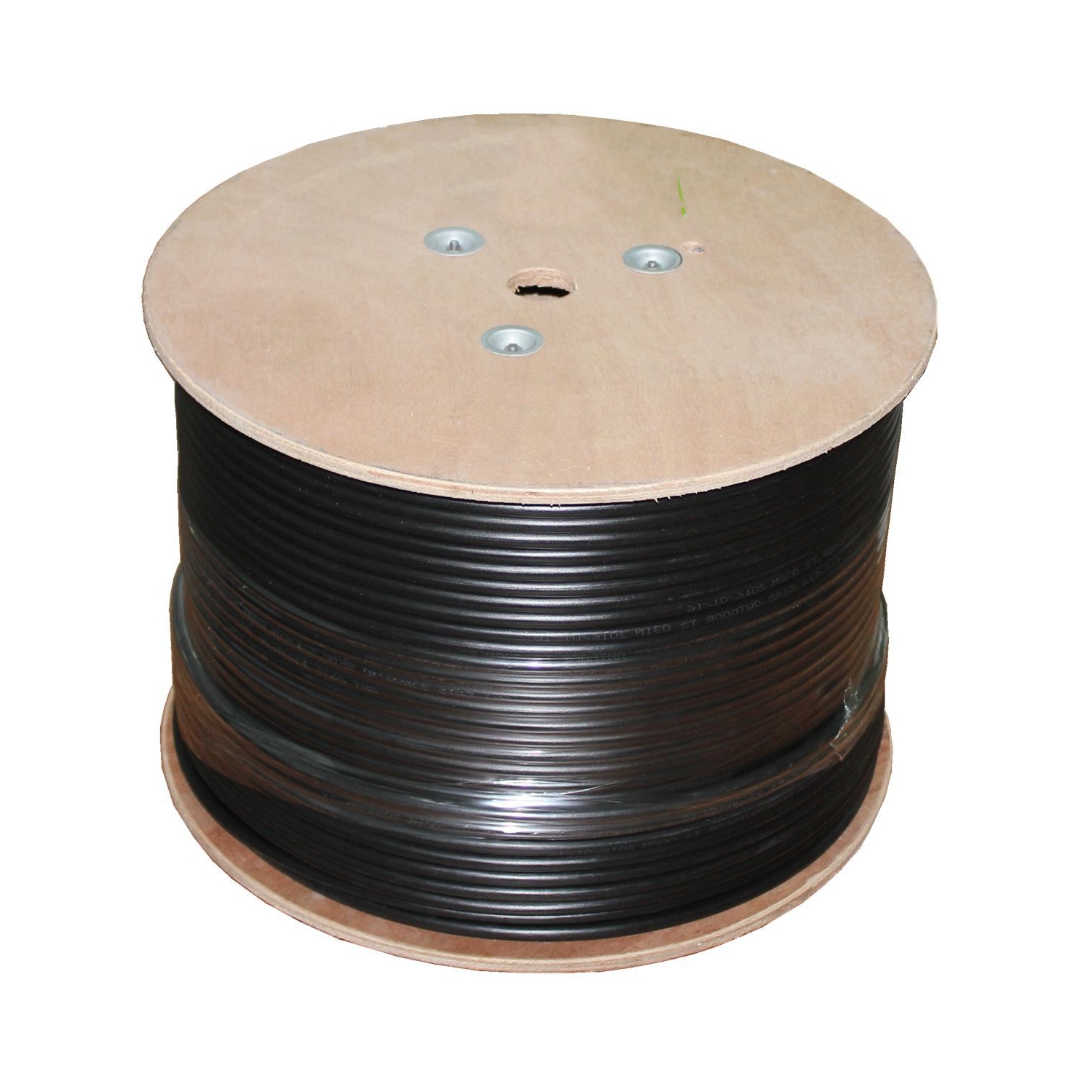

Packaging length	305M wooden drum
Packaging dimension	35x35x32cm/carton
