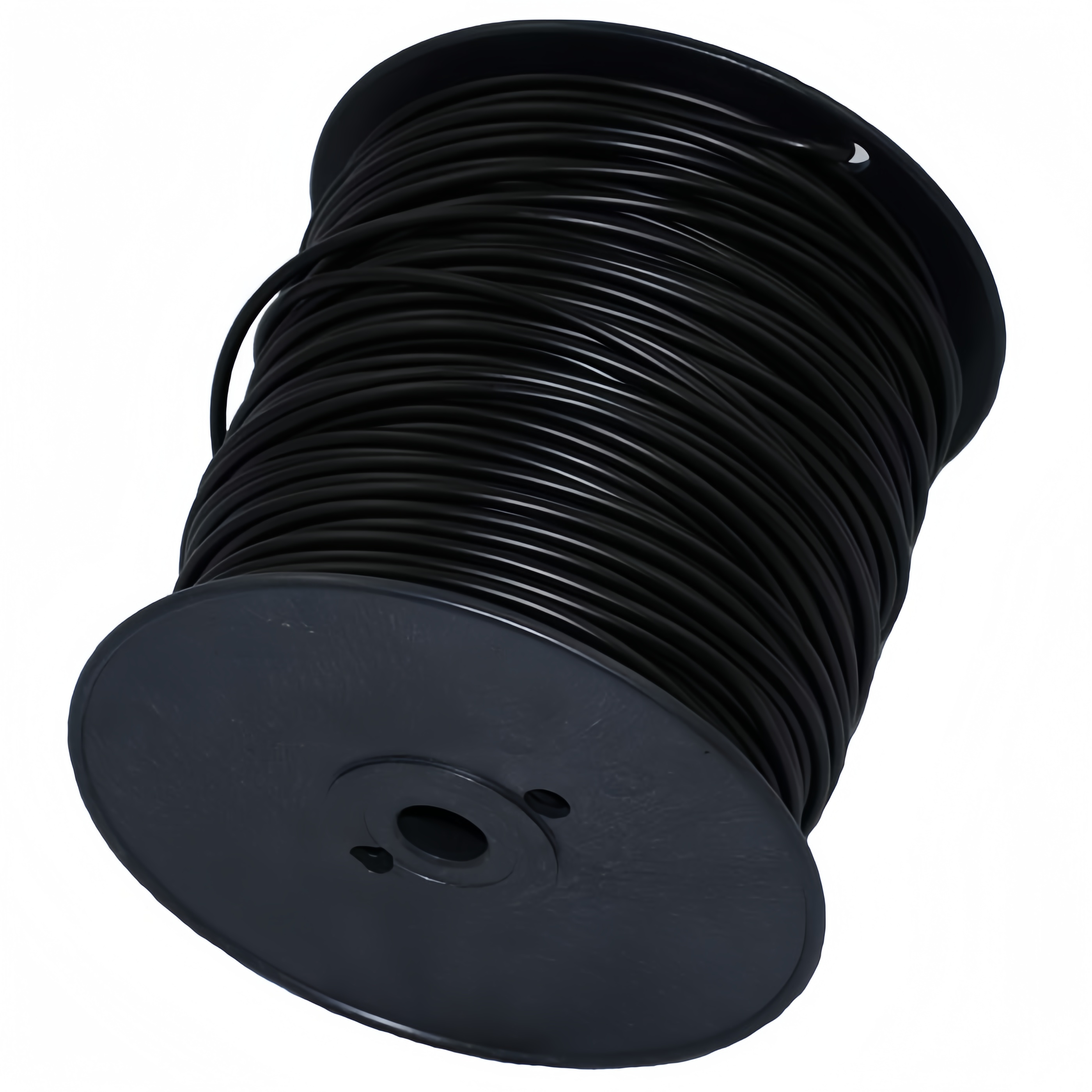

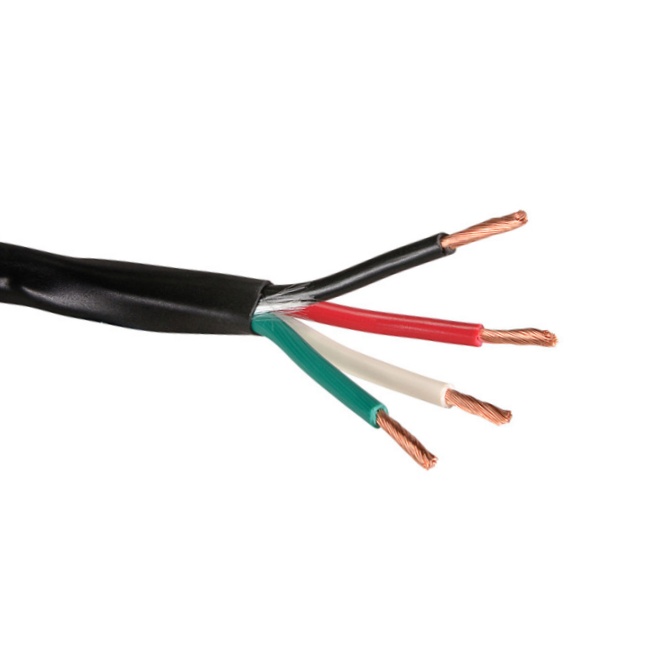

4C Speaker Cable Black

APPLICATION
In Wall Speaker Cable is suitable touse within Audio and Instrumentation or general purpose. The cable is constructed with stranded Bare Copper/CCA, PVC insulation and PVC/LSZH Outer Jacket. The cable for in-wall and direct burial installation.

PHYSICAL CHARACTERISTICS
Characteristic	Value
No. of Conductor	2 core or 4 core
Conductor Size	20AWG, 18AWG, 16AWG, 14AWG, 12AWG, 10AWG, 8AWG
Insulation Diameter	2.50 mm
Jacket Thickness	0.55mm--0.6mm
Jacket Diameter	5.0±0.3mm (18AWG)
Max. Recommended Pulling Tension	50 N
Operating Temperature	-20 C to +60 C
ELECTRICAL CHARACTERISTICS
Characteristic	Value
Max. Conductor DCR	21.5 Ω/km
Dielectric Strength between Pairs	1.5 kv/5min
Max. Operating Voltage	300V
Sparker Test	3000 VAC
MECHANICAL CHARACTERISTICS
Characteristic	Value
Test Material	PVC/PE
Before Tensile Strength (Mpa)	13.8
Aging Elongation (%)	100
After Tensile Strength (Mpa)	85
Aging Elongation (%)	50
Min. Bend Radius (Install)	10XOD
Cold Bend (-20±°C x 4 hrs)	No Crack
