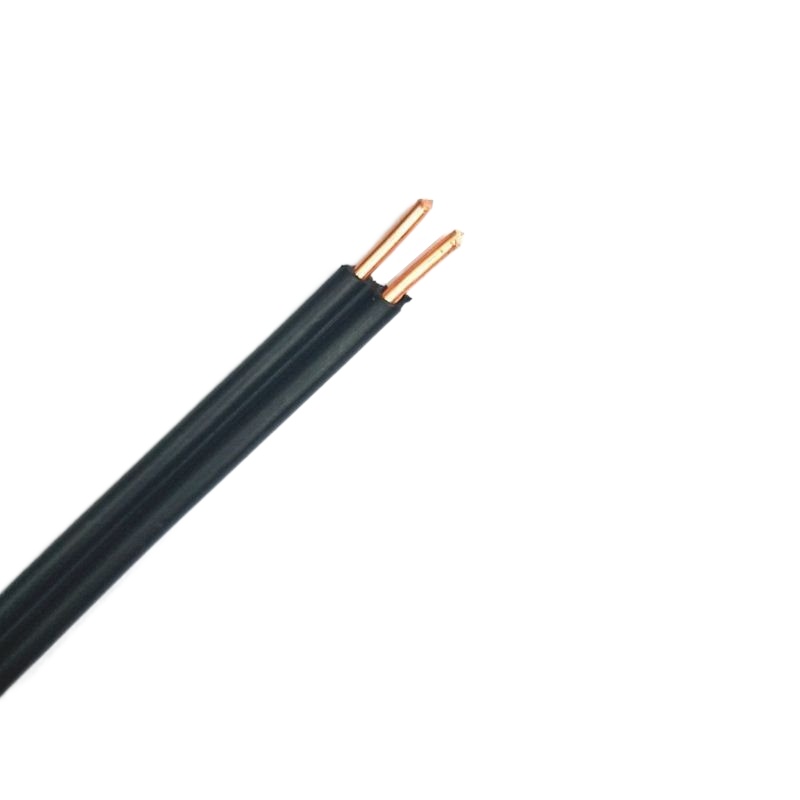

Telephone Drop Wire

Application:
PE-insulated aerial drop wire designed for use in extending telephone circuits to subscriber premises by means of an aerial drop from distribution wire or cable.

Attribute	Value
Conductor
Conductor Material	Solid Copper or CCS
Conductor Diameter	1.02mm or request
Jacket
Jacket Material	PVC or PE
Average Thickness	0.5mm
Outer diameter	2.5*7.1mm
Electrical Characteristics
Conductor DC Resistance 20°C	21.4 ohms/km
Proof voltage	MinAC1.5KV
AC Leakage Current Through overall	AC1500V≦10mA
Jacket	<9.8nF//100M
Rated Temperature	70°C
Rated Voltage	300V

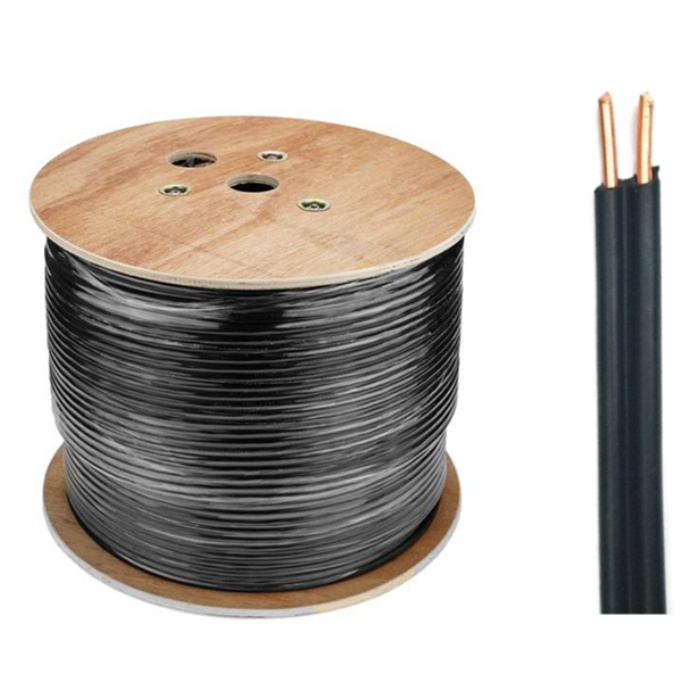

Package	305m wooden reel
